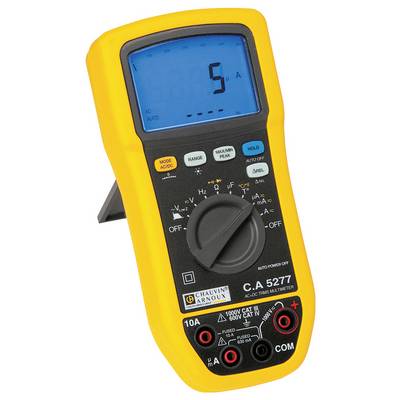

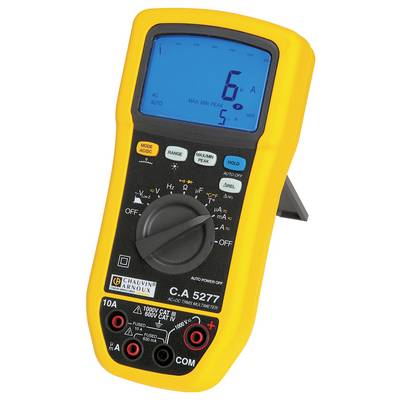

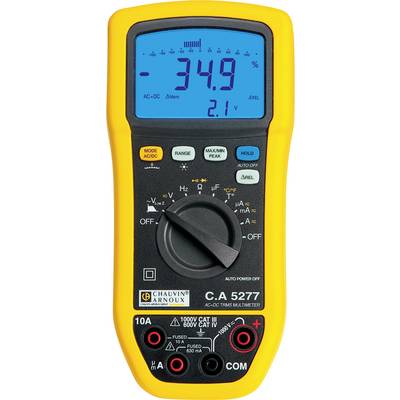

Chauvin Arnoux C.A 5277 Handheld multimeter Digital Splashproof (IP54) CAT III 1000 V, CAT IV 600 V Display (counts): 6

  • Item no.: 1195124
  • Manufacturer no.: P01196777
  • EAN: 3760171417669

The ergonomics and design of this multimeter are tailored to its essential functions. The display illumination ensures that measurements are easy to read. The compact housing with a protective slip cover material makes it easy to handle.This text is …

  • Item no.: 1195124
  • Manufacturer no.: P01196777
  • EAN: 3760171417669

The ergonomics and design of this multimeter are tailored to its essential functions. The display illumination ensures that measurements are easy to read. The compact housing with a protective slip cover material makes it easy to handle.This text is …

Voltage reading range DC (min.) 0.01 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.01 mV
V AC reading range (max.) 1000 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 60 MΩ
Reading range - capacity 0.1 nF 60 mF
Frequency reading range 10 Hz - 50 kHz
DC resistance 10 MΩ
AC resistance 10 MΩ
Measurement type True RMS
Frequency range 40 Hz - 10 kHz
Power supply (details) 9 V battery
Height 190 mm
Width 90 mm
Length 45 mm
Weight 400 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
Current reading AC/DC
Type C.A 5277
Display Digital
Display (counts) 6000
Features Splashproof (IP54)
Temperature reading range (max.) +1200 °C
Temperature reading range (min.) -50.9 °C
Product type Handheld multimeter

Technical data

Voltage reading range DC (min.) 0.01 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.01 mV
V AC reading range (max.) 1000 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 60 MΩ
Reading range - capacity 0.1 nF 60 mF
