MikroElektronika MIKROE-977 PCB design board MIKROE-977 Atmel AVR
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Memory: 16 KB FLASH, 1 KB SRAM and 0.5 KB EEPROM
- Length
140 mm
- Width
82 mm
- Product type
PCB design board
- MC layout
AVR
- Series
Atmel AVR
- Technology
8-bit MCU
- Tool type
Development kit
- Operating voltage
5 V DC
- Min. operating voltage
7 V AC
9 V DC
- Max. operating voltage
23 V AC
32 V DC
Documents & Downloads
Datasheet
Datasheet 1221388 MikroElektronika MIKROE-977 PCB design board MIKROE-977 Atmel AVR
Description

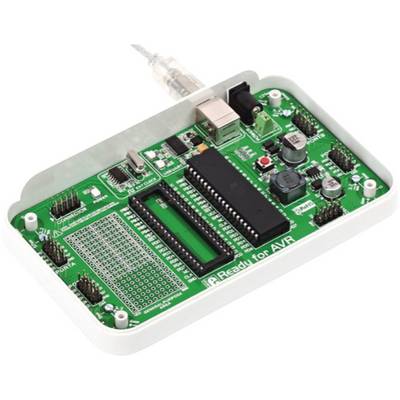

The Ready™ for the AVR Board is the best solution for quick and easy development of microcontroller applications with 40-pin AVR MCUs. It comes with an ATmega16 to a 8 MHz Crystal Oscillator is connected. It contains four IDC 10 header for all available micro-controller ports, a USB-UART module, prototype areas and a power supply circuit. Ready™ for the AVR® is completely from mikroC™, micro-basic™ and micro pascal™ compilers for the AVR® supports. The compilers are with dozens of examples which demonstrate all the functions of the board.
