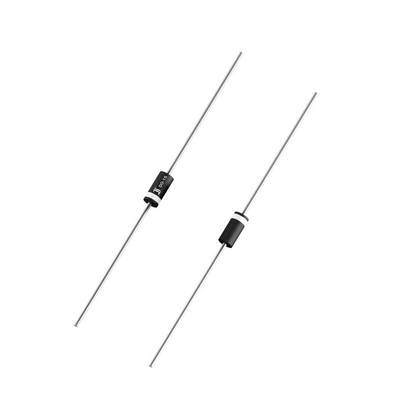

Image similar
Image similar
Diotec TVS diode BZW04-28B DO 15 34.70 V 400 W Tape
EAN:
Part number:
Item no:
Packaging type
Tape
Product type
TVS diode
Enclosure
DO 15
Reverse voltage U(R)
28.2 V
Terminal voltage U(CL)
45.7 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
200
-
€ 0.14093
600
9% = € 0.01
€ 0.12809
1000
13% = € 0.02
€ 0.12297
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 200
Total (€ 0.14093 / piece)
€ 28.19
plus VAT.
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type AxialDO-15 housingTermination of voltage - VBRmin 31.40 VVBRmax 34.70 VIt 1 mAPulse power loss - PPPM 400 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 28.2 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 45.70 VIPPM 8.80 ALock layer capacity - CJ: PFVR V
- Packaging type
Tape
- Type
BZW04-28B
- Product type
TVS diode
- Enclosure
DO 15
- Manufacturer
Diotec
- Reverse voltage U(R)
28.2 V
- Breakdown voltage U(BR)
34.70 V
- Terminal voltage U(CL)
45.7 V
- Peak current I(pp)
8.8 A
- Power (max) P(TOT)
400 W
- Polarity
Unidirectional
- Mounting type
Through-hole mounting
- Series
BZW04
- RoHS-compliant
Yes
- Operating temperature (max.)
175 °C
- Operating temperature (min.)
-50 °C
