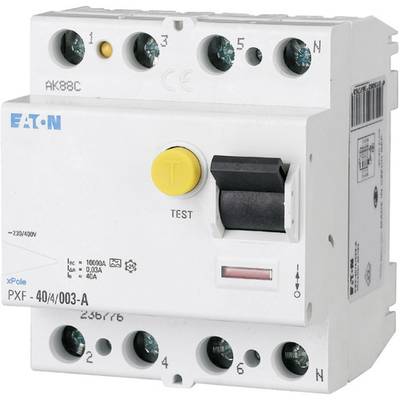

Eaton 102883 PXF-100/4/03-A RCCB A 4-pin 100 A 0.3 A 400 V AC
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.3 A
Nominal current - rounded value
100 A
Datasheet (PDF)
Technical specifications
- Connectable conductor cross-section single-wired: 1.5 - 35 mm²
- connectable conductor cross-section multi-wired: 1.5 - 16 mm²
- Triggering: Undelayed s
- Rated frequency [f]: 50 Hz
- Rated insulation voltage UI: 440 V
- Rated breaking capacity / rated breaking capacity [in / IΔm]: 1000 A
- Rated surge voltage strength Uimp: 4 kV
- Rated current for power dissipation [in]: 100 A
- Width in subunits: 4
- Installation width: 70 (4TE) mm
- Sensitivity: Pulse current sensitive
- Frequency: 50 Hz
- Device base measurement: 80 mm
- Operating voltage limits: 184 - 440 V AC
- Cap installation dimension: 45 mm
- Clamp cross section: 2 x 16 mm2
- Climatic stability: 25-55°C/90-95% relative humidity according to IEC 60068-2
- Short-circuit strength (ICW): 10 kA
- Life: ≧ 20000
- Material strength Gluing: 0.8 - 2 mm
- Max. Operating ambient temperature +60 °C
- Min. Operating ambient temperature: -25 °C
- with locking device: Yes
- Mounting: Fast mounting with 2 DIN-rail plugs IEC/EN 60715
- Mounting type: DIN-rail
- Protection type (IP): IP20
- Surge current strength: 0.25 kA
- Ambient temperature during operation: -25 - 40 °C
- Power loss of the equipment, current-dependant [PVID]: 18.8 W
- Pollution degree: 2
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.3 A
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Type
Switchgear for domestic and commercial applications
- Switch-off capacity
10 kA
- Content
1 pc(s)
- Nominal voltage
400 V AC
- Depth
70.5 mm
DIN rail
AC
70.5 mm
100 A
400 V
440 V
4
0.3 A
A
FALSE
10 kA
0.25 kA
2
4
FALSE
7035
FALSE
50 Hz
IP20
1.5-35 mm²
1.5-16 mm²
TRUE
-25-60 °C
TRUE
4 kV
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1716852 Eaton 102883 PXF-100/4/03-A RCCB A 4-pin 100 A 0.3 A 400 V AC
User & Safety Instructions
User & Safety Instructions 1716852 Eaton 102883 PXF-100/4/03-A RCCB A 4-pin 100 A 0.3 A 400 V AC
Description
Compact residual current circuit breaker PXF, 4-pin for wide range of applications.
This text is machine translated.
This text is machine translated.
