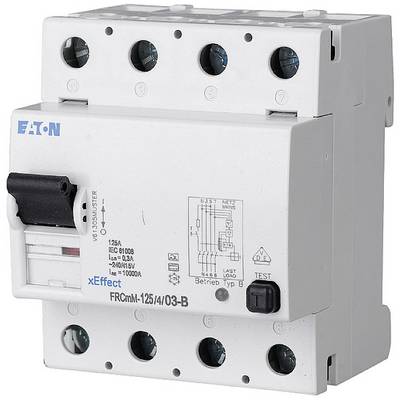

Eaton 171184 FRCMM-125/4/003-B RCCB B 125 A 0.03 A 415 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
125 A
Datasheet (PDF)
Number
Total (€ 3,542.02 / piece)
€ 3,542.02
plus VAT.
Technical specifications
- Connectable conductor cross-section single-wired: 1.5 - 50 mm²
- connectable conductor cross-section multi-wired: 1.5 - 16 mm²
- Rated insulation voltage UI: 440 V
- Width in division units: 4
- Mounting depth: 70.5 mm
- Frequency: 50 Hz
- Short-circuit strength (ICW): 10 kA
- with locking device: Yes
- Mounting type: DIN-rail
- Protection type: IP20
- Ambient temperature during operation: -25 - +40 °C
- Pollution degree: 2
- additional devices possible: Yes
- Product type
RCCB
- Number of pins
4
- Release characteristics
B
- Differential current rating
0.03 A
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Content
1 pc(s)
- Nominal voltage
415 V
- RoHS-compliant
Yes
DIN rail
AC
70.5 mm
125 A
415 V
440 V
4
0.03 A
B
FALSE
10 kA
0.25 kA
2
4
FALSE
7035
FALSE
50 Hz
IP20
1.5-50 mm²
1.5-16 mm²
TRUE
-25-60 °C
TRUE
4 kV
