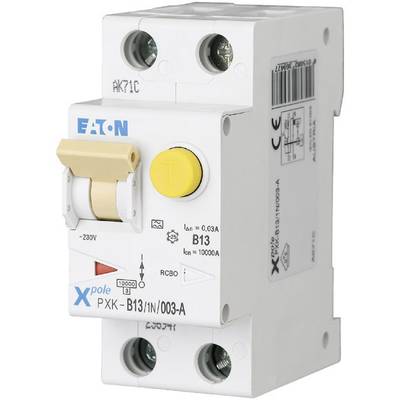

Eaton 236947 RCBO 2-pin 13 A 0.03 A 240 V AC

  • Item no.: 1716966
  • Manufacturer no.: 236947
  • EAN: 4015082369477

Compact residual current protective switch/circuit breaker switch for wide range of applications.

This text is machine translated.

  • Warranty: 24 months
  • Manufacturer: Eaton
  • Item no.: 1716966
  • Manufacturer no.: 236947
  • EAN: 4015082369477

Compact residual current protective switch/circuit breaker switch for wide range of applications.

This text is machine translated.

  • Warranty: 24 months
  • Manufacturer: Eaton
  • Connectable conductor cross-section single-wired: 1 - 25 mm²
  • connectable conductor cross-section multi-wired: 1 - 25 mm²
  • Number of fused poles: 1
  • Trigger: Undelayed
  • s Rated insulation voltage UI: 440 V
  • Rated surge voltage strength Uimp: 4 kV
  • Width in division units: 2
  • Sensitivity: Pulse current-sensitive
  • Energy limitation class: 3
  • False release protection: No
  • Fault current type: A
  • Frequency: 50 Hz
  • suitable for flush-mounting No
  • Basic function: Combined RCD/MCB devices
  • Max. Operating ambient temperature +40 °C
  • min. Operating ambient temperature: -25 °C
  • with locking device: No
  • Switching neutral conductor: Yes
  • Number of poles (total): 2
  • Protection class (IP): IP20
  • Surge current strength: 0.25 kA
  • Ambient temperature during operation: -25 - 40 °C
  • Power loss of the equipment, current-dependant [PVID]: 3.4 W
  • Pollution degree: 2
  • Overvoltage category: 3
Type 1-pole + N
Content 1 pc(s)
Depth 69.5 mm
Differential current rating 0.03 A
Nominal current 13 A
Nominal voltage 240 V AC
Switch-off capacity 10 kA
Number of pins 2
Release characteristics B
Product type RCBO

Technical data

  • Connectable conductor cross-section single-wired: 1 - 25 mm²
  • connectable conductor cross-section multi-wired: 1 - 25 mm²
  • Number of fused poles: 1
  • Trigger: Undelayed
  • s Rated insulation voltage UI: 440 V
  • Rated surge voltage strength Uimp: 4 kV
  • Width in division units: 2
  • Sensitivity: Pulse current-sensitive
  • Energy limitation class: 3
  • False release protection: No
  • Fault current type: A
  • Frequency: 50 Hz
  • suitable for flush-mounting No
  • Basic function: Combined RCD/MCB devices
  • Max. Operating ambient temperature +40 °C
  • min. Operating ambient temperature: -25 °C
  • with locking device: No
  • Switching neutral conductor: Yes
  • Number of poles (total): 2
  • Protection class (IP): IP20
  • Surge current strength: 0.25 kA
  • Ambient temperature during operation: -25 - 40 °C
  • Power loss of the equipment, current-dependant [PVID]: 3.4 W
  • Pollution degree: 2
  • Overvoltage category: 3
Type 1-pole + N
Content 1 pc(s)
Depth 69.5 mm
Differential current rating 0.03 A
Nominal current 13 A
Nominal voltage 240 V AC
Switch-off capacity 10 kA
Number of pins 2
Release characteristics B
Product type RCBO
