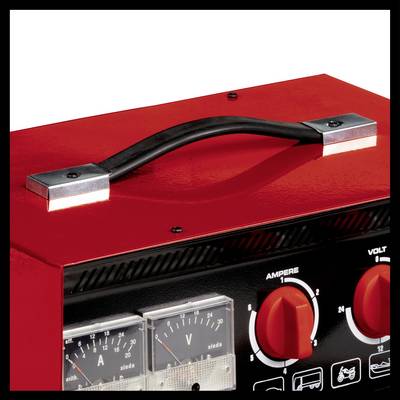

Red portable power generator with handle, two displays for voltage and current visible, red control knobs beside them.

A man is jump-starting a car with a battery booster outdoors. The bonnet is open; the man is wearing a white T-shirt.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 176.46 / piece)

€ 176.46

plus VAT.

Report legal concerns

Einhell CC-BC 30/1 battery charger

Highlights & Details

Switchable charging voltage
6 times charging current
Jump-start device
3 m remote start cable

Technical specifications

Jump-start device 100A - 5 sec
Charging current min. (Arith./eff.) - Max. (Arith./eff) at 6 V d.c. 0.7 / 0.9 - 21/ 30 A
Charging current min. (Arith./eff.) - Max. (Arith./eff) at 12V d.c. 1.0 / 1.6 - 20 / 30 A
Charging current min. (Arith./eff.) - Max. (Arith./eff) at 24V d.c. 1.8 / 3.0 - 14 / 20 A

Product type: Charger

Dim: (L x W x H) 400 x 260 x 204 mm

Battery voltage: 24 V
12 V
6 V

Operating voltage: 230 V / AC

Recommended battery capacity at 12 V max.: 80 Ah

Recommended battery capacity at 12 V min.: 3 Ah

Recommended battery capacity at 24 V (max.): 50 Ah

Recommedned battery capacity at 24 V min.: 4 Ah

Recommended battery capacity at 6 V max.: 150 Ah

Recommended battery capacity at 6 V min.: 5 Ah

Suitable for: Lead acid

Weight: 11.88 kg

Charging current at 12 V: 30 A

Charging current at 24 V: 20 A

Charging current at 6 V: 30 A

Width: 260 mm

Height: 204 mm

Length: 400 mm

: Protection class I

Jump start current (12 V): 100 A

Jumpstart current (24 V): 100 A

Jump start current (6 V): 100 A

Cable Ø range

Documents & Downloads

Datasheet

Datasheet 1537193 Einhell CC-BC 30 1078121 Charger 24 V, 12 V, 6 V 30 A 30 A 20 A

User & Safety Instructions

User & Safety Instructions 1537193 Einhell CC-BC 30 1078121 Charger 24 V, 12 V, 6 V 30 A 30 A 20 A

Conformity certificate

Conformity certificate 1537193 Einhell CC-BC 30 1078121 Charger 24 V, 12 V, 6 V 30 A 30 A 20 A

Warranty Terms

Warranty Terms 1537193 Einhell CC-BC 30 1078121 Charger 24 V, 12 V, 6 V 30 A 30 A 20 A

Description

The CC-BC 30/1 battery charger is a powerful and robust workshop charger with switchable 6V/12V/24V charging voltage and jump start device. Thus it is best suited for the workshop, agriculture and payload traffic. The charging current can be set in 6 stages and the jump-start device (100A/5s) can be easily operated by means of a jump-start switch on the device. The two large-dimensioned display instruments can be used to read the current charging current and the charging voltage accurately and to monitor the charging process. The powerful and fully insulated terminal clamps ensure optimum contact with the battery terminals. The device is also equipped with a 2-fold reverse polarity and overload protection and has a scratch-proof, powder-painted steel plate housing with a sturdy carrying handle.

This text is machine translated.

Features

Construction protection class IOverload, voltage reversal and short-circuit protectionSteel plate housingHandle2 in 1: Load and restart with one deviceCharging voltage switchCharging current switch
