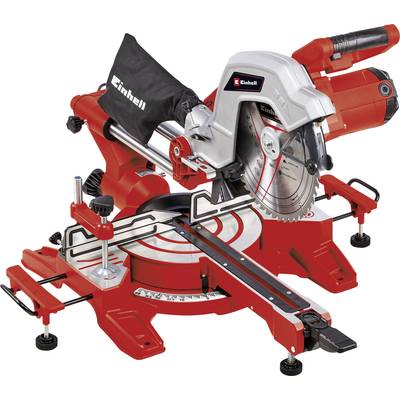

A red electric mitre saw with dust bag and scale, suitable for precise cuts in wood or plastic.

A red mitre saw with angle adjustment and scale shows a silver saw blade that is aligned for precise woodcuts.

Close-up of a rotating circular saw blade on a machine; focus on the sharp teeth and metal casing.

A finger is pressing a red safety switch on a metal machine to activate or deactivate it.

Circular saw cutting a wooden board; red lines and arrows indicate the direction of the cut.

Mitre saw with red-marked cutting area. The scale below shows the angles. Primarily used for precise wood cutting.

A man is working in a workshop with a circular table saw, wearing safety glasses, cutting a piece of wood.

A Einhell circular saw in close-up, showing a precise cutting line, with an arrow marker indicating the cutting direction.

1/8

Fast track dispatch on Thu, 9 Jul

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 226.05 / piece)

€ 226.05

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Einhell pull-chop miter saw TC-SM 254

1900 kW
Cutting depth (max.) (45°/ 90° ): 215 mm/305 mm

Technical specifications

- Saw blade Ø254 x ø30 mm
- Number of saw teeth 48 pce
- Swivel range (saw head) -45 ° - +0 °
- Swivel range (saw table) -47 ° - +47 °
- Cutting width 90° x 90° 305 x 85 mm
- Cutting width 90° x 45° 215 x 85 mm
- Cut width 45° x 90° 305 x 45 mm
- Cut width 45° x 45° 215 x 45 mm
- diameter of suction connection 36 mm

: 1900 kW

Operating voltage: 240 V

Cutting depth (max.) (45°): 215 mm

Cutting depth (max.) (90°): 305 mm

Weight: 14.8 g

Content: 1 pc(s)

Idle speed: 5000 U/min

UKCA: not relevant

Product type: Chop and mitre saw

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2178216 Einhell TC-SM 254 Chop and mitre saw 1900 kW

Warranty Terms

Warranty Terms 2178216 Einhell TC-SM 254 Chop and mitre saw 1900 kW

Description

With the Einhell TC-SM 254 Zug miter saw, the ambitious DIY enthusiast is best equipped for sawing and chop tasks that occur in the home, workshop and garage. With a powerful 1,900 watt, the saw blade (Ø254 outside x ø30 inside) works through the material. The stable saw has a smooth pull function for wide workpieces. The precise angle setting on the turntable facilitates successful oblique cuts. For the most common angles in Do-IT-Yourself-work, the rotary table already has snap-in positions to set the angles quickly and safely, was also made easier by the clever quick adjustment. The user can find easy-to-read scales for angles and widths. The saw head can also be tilted to the left for miter cuts. The cutting width is up to 305 millimeters at a 90° position and up to 210 millimeters at 45°, the cutting height up to 85 mm. The highly visible integrated cutting line laser makes the work much easier. Supports are provided for longer workpieces on the left and right, so that the workpieces can be fixed, there is a practical clamping device. The high-quality carbide saw blade provides a perfect pattern. The spindle lock and the well-adjustable saw blade screw make it easier to change the saw blade. A dust trap funnel is located behind the saw blade for improved saw dust removal. The existing suction connection has a diameter of 36 millimeters, alternatively the enclosed dust bag can be used.

This text is machine translated.

Features

Double-mounted pull-function for processing large work piecesAngle adjustment on the rotary table comfortably by quick adjustmentRotary table with latching positions at the most commonly used angles45° inclined saw head to the left, for miter cutsA clearly visible laser simplifies the application of the work pieceIn each case left and right with support for longer work-pieces
