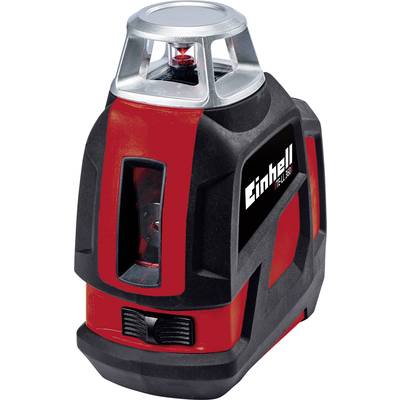

Einhell TE-LL 360 Cross line laser Range (max.): 20 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Highlights & Details
Einhell cross-line laser TE-LL 360
- Simple projection of a laser cross
- Horizontal 360° line for easy alignment of objects
- Projection of a horizontal and/or vertical laser line
Technical specifications
- - Laser diode (horizontal): 650 nm
- - Laser diode (vertical): 635 nm
- - Self-leveling time: 5 s.
- Product type
Cross line laser
- Range (max.)
20 m
- Accuracy (+/-)
0.4 mm/m
- Auto-adjustment range (+/-)
4°
- Laser category
2
- Tripod thread mount
1/4"
- Length
104 mm
- Width
56 mm
- Height
118 mm
- Dim
(L x W x H) 104 x 56 x 118 mm
- Weight
270 g
Manufacturer's standards (no certificate)
- Type
TE-LL 360
Documents & Downloads
Datasheet
Datasheet 1909904 Einhell TE-LL 360 Cross line laser Range (max.): 20 m
User & Safety Instructions
User & Safety Instructions 1909904 Einhell TE-LL 360 Cross line laser Range (max.): 20 m
Warranty Terms
Warranty Terms 1909904 Einhell TE-LL 360 Cross line laser Range (max.): 20 m
Description
The Einhell 360° TE-LL 360 laser is an ideal tool for installations, renovations, laying and much more with a working range of 20 meters. Thanks to a horizontal 360° laser line, it is very easy to align objects in the room at the same height. In addition, the TE-LL 360 offers a projection of horizontal and vertical laser lines, so that the measurement takes place quickly and comfortably by hand. The Einhell 360° TE-LL 360 laser is self-leveling and warns the user when the inclination is more than four degrees via LED. The self-leveling time is five seconds. The TE-LL 360 can also be used as a digital spirit level. A 1/4" thread is integrated in the 360° laser for use with a tripod. The handling is comfortable thanks to a soft grip. The height-adjustable wall bracket makes working easy. It is also included in the delivery as well as a practical bag for storage.
This text is machine translated.
This text is machine translated.
Features
- Simple projection of a laser crossHorizontal 360° line for easy alignment of objectsProjection of a horizontal and/or vertical laser lineSelf-leveling (LED warning with more than 4° inclination)Integrated 1/4" thread for stand use
Scope of delivery
- 1x Cross line laser TE-LL 360 i1x height-adjustable wall bracket1x storage bag
Hints
4x mignon (AA) batteries are required for operation. (PSU/batteries not included.)
