elo Touch Solution 1523L Touchscreen EEC: D (A - G) 38.1 cm (15 inch) 1024 x 768 p 4:3 23 ms VGA, DVI, USB
EAN:
Part number:
Item no:
Number
Total (€ 718.49 / piece)
€ 718.49
plus VAT.
Highlights & Details

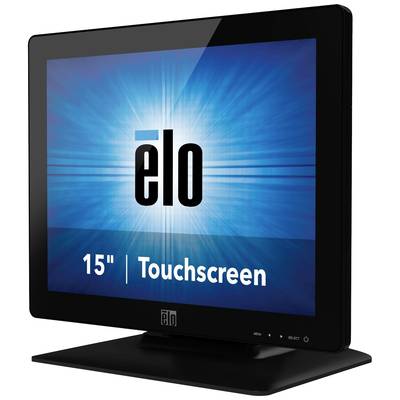

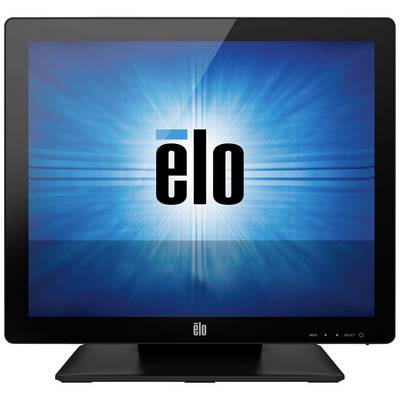

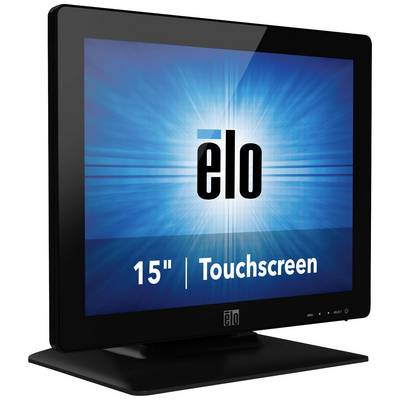

ELO Touch Solution 1523L 15 inch touch screen monitor, black
- Screen size 38.1 cm (15 inch)
- Energy efficiency rating (calc): D (A - G)
- Interfaces: VGA, DVI, USB;Response time: 23 ms;Touchscreen, Built-in speakers
Technical specifications
- MTBF : 50000 hours
- Product type
Touchscreen
- Image format
4:3
- Response time
23 ms
- Static contrast ratio
800 : 1
- Brightness
270 cd/m²
- Hor. viewing angle
160°
- Vertical viewing angle
150°
- Wall mounting option
75 x 75mm VESA standard
- Points of contact
10
- Factory colour
Black
- Features
Touchscreen
Built-in speakers
- No. of DVI ports
1 x
- No. of USB ports
2 x
- No. of VGA ports
1 x
- Interfaces
VGA
DVI
USB
- Width
358.1 mm
- Height
318.5 mm
- Depth
199.1 mm
- Dim
(W x H x D) 358.1 x 318.5 x 199.1 mm
- Weight
4.2 kg
- Power consumption (standby)
3.0 W
- Display type
TFT
- Display size
- 23 inch
D (A - G)
- Display
38.1 cm (15 inch)
- Screen size/position settings
Tilt
- HDR support
No
- Audio power (max.)
2 x 2 W
- OSB languages
English
French
Italian
German
Spanish
Chinese (trad.)
Chinese (simplified)
Japanese
- Touchscreen (display)
Yes
- Resolution (max.)
1024 x 768 p
- Display (cm)
38.1 cm
- Screen size diagonal (cm)
38.1 cm
- Screen size diagonal (inches)
15 inch
- Power consumption (off)
0.2 W
- Power consumption (ON)
10.5 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2581451 elo Touch Solution 1523L Touchscreen EEC: D (A - G) 38.1 cm (15 inch) 1024 x 768 p 4:3 23 ms VGA, DVI, USB
Description
The Elo 1523L 15-inch standard format touch monitor is recommended for tough use in retail and hospitality environments, thanks to its robustness, durability and esthetics. In addition, the elegant edge-to-edge design of the 1523L ensures a clear, modern look in any environment. This borderless (zero-bezel) monitor is available in black or white with the market-leading Elo touch technologies. Both versions impress with a stable, drift-free operation with outstanding image quality, resolution and light transmission, in order to deliver a precise response with lively images when touched.Integrated touch sensorsTwo market-leading Elo sensor technologies are available for this 15-inch monitor. Both realize a dynamic multi-touch functionality on borderless zero-bezel display. The IntelliTouch® SAW sensor system in the zero-bezel borderless display achieves the highest optical quality in dry retail and hospitality environments. For a tablet-like feel with a 10-touch response, TouchPro® PCAP technology features an exact edge-to-edge glass layout - perfect for multi-user interaction. Another plus is the fast and extremely precise touch response - typical for this groundbreaking Elo technology.Installation flexibilityThe various mounting and stand options for the 1523L provide high installation flexibility and enable the installation on a table surface as well as the stand mounting in portrait and landscape orientation with the help of VESA standard mounting brackets. Designed for two orientations, the stand is designed with a single hinge for height and tilt adjustment.Design for the highest loadThis 15-inch touch screen monitor is typically Elo's superior quality and reliability. All our products are subjected to the toughest reliability tests (over 20 test series) to achieve an average failure safety of 50,000 operating hours.
This text is machine translated.
This text is machine translated.
Features
- Integrated cable routingLong-life product cycleStand for two orientations - single hinge with height and tilt adjustmentScreen is resistant to dirt, dust and liquidTable, wall or VESA mountingInternal speakers
Scope of delivery
- Cable
- Quick guide.
