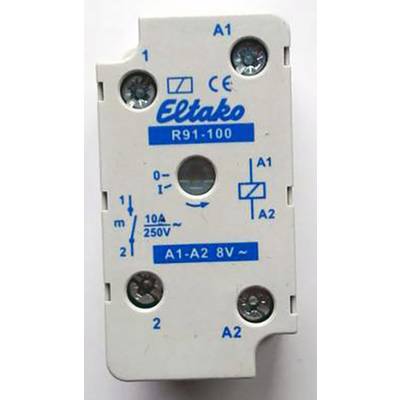

Eltako R91-100-8VAC Relay Nominal voltage: 8 V Switching current (max.): 8 A 1 maker Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay
Contact type
1 maker
Nominal voltage
8 V
Switching current (max.)
8 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€ 29.40
€ 28.56
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Eltako R,91-100-8V switching relay 1 Sfur Junction Boxes 9110 0410
- For flush and surface mounting
- With manual actuation
- With switching position display
Technical specifications
- Packaging type
Piece
- Product type
Relay
- Type
R91-100-8VAC
- Min. pick-up voltage
8 V AC
- Max. pick-up voltage
8 V AC
- Contact type
1 maker
- Contact material
AgSnO2
- Nominal voltage
8 V
- Switching current (max.)
8 A
- Max. switching capacity
2300 W
IP20
IP50
- Max. temperature
50 °C
- Min. temperature
-5 °C
- Length
50 mm
- Width
26 mm
- Height
32 mm
- Dim
(L x W x H) 50 x 26 x 32 mm
- Content
1 pc(s)
- Weight
0.054 kg
- RoHS-compliant
Yes
Surface mounted (plaster)
Partially electronic
32 mm
10 A
0
8-8 V
AC
50-50 Hz
AC
8 A
2300 W
2300 VA
2300 VA
500 VA
0
1
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1910776 Eltako R91-100-8VAC Relay Nominal voltage: 8 V Switching current (max.): 8 A 1 maker Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1910776 Eltako R91-100-8VAC Relay Nominal voltage: 8 V Switching current (max.): 8 A 1 maker Piece 1 pc(s)
Description
This is a switching relay, which is suitable for installation and AP-mounting. In addition, this is a manual operation and a switching position indicator. The switching relay is 26 mm wide, 32mm deep and 50mm long. The duty cycle is 100%, the control power requirement 5 W and the contact spacing 2 mm. The test voltage of contact to contact 2000 V and of control connection to contact 4000 V is. In addition, it can also be used as an electronic switching relay HE 61-UC and universal control voltage UC covers the voltage range 8-253 V AC 50-60 Hz and 10-230 V DC.
This text is machine translated.
This text is machine translated.
Features
- 50 mm long, 26 mm wide, 32 mm deep
- Duty cycle 100%
- Control power requirement 5 W
- Contact distance: 2mm.
- Test voltage contact/contact 2000 V and test voltage control connections/contact 4000 V
- It can also be used the electronic switching relay HE 61-UC
- The universal control voltage UC covers the voltage range 8-253 V AC 50-60 Hz and 10-230 V DC.
