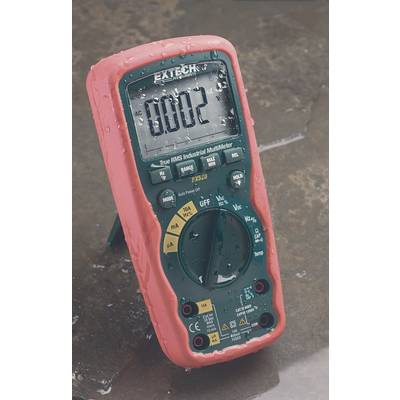

Extech EX520 Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
14-day return policy included
EX520
Highlights & Details
- True RMS
- K-type temperature
- Capacitance measurement
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 60 MΩ
- Reading range - capacity
1000 nF -1000 µF
- Frequency reading range
0.001 Hz -40 MHz
- Temperature
-45 to +750 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.09 %
- Measurement type (details)
True RMS
- Frequency range
40 Hz - 1 kHz Hz
- Interfaces
none
- Power supply (details)
9 V battery pack
- Height
187 mm
- Width
81 mm
- Weight
342 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
EX520
- Display
Digital
- Display (counts)
6000
- Dim
(W x H) 81 mm x 187 mm
- Temperature reading range (max.)
+750 °C
- Temperature reading range (min.)
-45 °C
- Features
Waterproof (IP67)
- Basic accuracy
± 09 %
- Displays
6000 counts
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 122214 Extech EX520 Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Conformity certificate
Conformity certificate 122214 Extech EX520 Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Description
The industrial multimeter EX520 is waterproof (IP67) and extremely robust due to its housing with moulded soft-rubber protection . A fall from two metres doesn't bother this multimeter one bit. The device is ideal for use outdoors and under extreme conditions.
Features
- Standard measurement ranges V, A, O, diode, continuity, hold
- True RMS measurement (TrueRMS)
- Capacitance, frequency, duty cycle measurement
- Automatic range selection (auto range)
- Display lighting
- Temperature measurement with type K probe
Scope of delivery
- Test leads
- Magnet-suspension tape
- Wired thermo-sensor
- Carry bag
- Battery (9 V block)
- User manual.
Hints
Accompanying wire thermo-sensor for -20 to +250 °C
