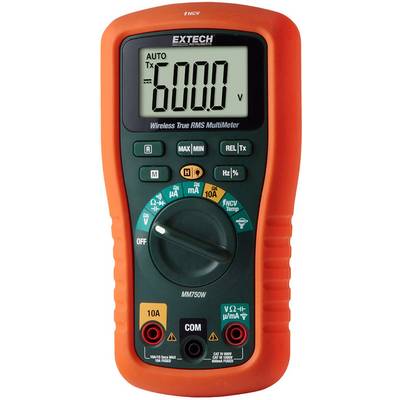

Extech Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 6000

  • Item no.: 2113996
  • Manufacturer no.: MM750W-NIST
  • EAN: 0793950387511

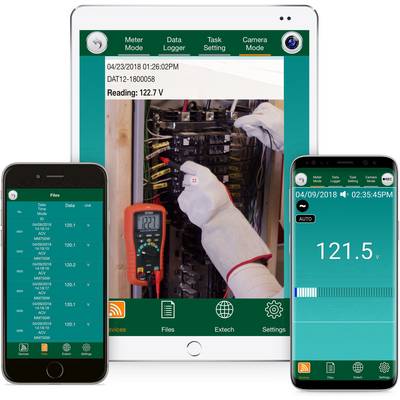

Innovative multimeter with 14 functions including contact-free AC voltage detection and temperature measurement. With the DAT12 data logger up to 15,000 measured values can be stored and transferred wirelessly to iOS and Android devices. This text is…

  • Warranty: 24 months
  • Manufacturer: Extech
  • Item no.: 2113996
  • Manufacturer no.: MM750W-NIST
  • EAN: 0793950387511

Innovative multimeter with 14 functions including contact-free AC voltage detection and temperature measurement. With the DAT12 data logger up to 15,000 measured values can be stored and transferred wirelessly to iOS and Android devices. This text is…

  • Warranty: 24 months
  • Manufacturer: Extech
  • Diodes Test: 3000 V.
Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 mV
V AC reading range (max.) 1000 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10.00 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10.00 A
Reading range - resistance 0.1 to 60.00 MΩ
Reading range - capacity 9,999 nF to 99.99 mF
Frequency reading range 9,999 Hz to 50.00 MHz
Temperature -40 to 1.382 °C
Basic accuracy 0.6 %
Measurement type True RMS
Interfaces Bluetooth®
Height 188 mm
Width 96 mm
Length 56 mm
Weight 415 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
Current reading AC/DC
Type MM750W-NIST
Display Digital
Display (counts) 6000
Features Data logger
Product type Handheld multimeter

Technical data

  • Diodes Test: 3000 V.
Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 mV
V AC reading range (max.) 1000 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10.00 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10.00 A
Reading range - resistance 0.1 to 60.00 MΩ
Reading range - capacity 9,999 nF to 99.99 mF
