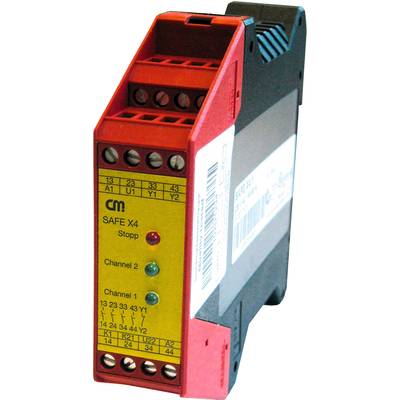

Extension module SAFE X4.1 CM Manufactory Operating voltage: 24 V DC/AC 4 makers, 1 breaker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Extension module
Operating voltage
24 V DC/AC
Type
SAFE X4.1
Contact type
4 makers
1 breaker
Switching voltage (max.)
24 V DC/AC
230 V AC
Number
Total (€ 151.25 / piece)
€ 155.46
€ 151.25
plus VAT.
Technical specifications
- Safety category: 4
- Performance level: PL e
- Type (general): Safety relay
- Certification: TUV/CE/UL/cUL
- Product type
Extension module
- Type
SAFE X4.1
- Operating voltage
24 V DC/AC
- Contact type
4 makers
1 breaker
- Switching voltage (max.)
24 V DC/AC
230 V AC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
+55 °C
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2226791 Extension module SAFE X4.1 CM Manufactory Operating voltage: 24 V DC/AC 4 makers, 1 breaker 1 pc(s)
Conformity certificate
Conformity certificate 2226791 Extension module SAFE X4.1 CM Manufactory Operating voltage: 24 V DC/AC 4 makers, 1 breaker 1 pc(s)
Description
Safe expansion of the number of output contacts for all safety relay (also SAFE C types). Two contacts are required from the device to be expanded for a secure contact extension. Please note that the fall-back period is extended.
