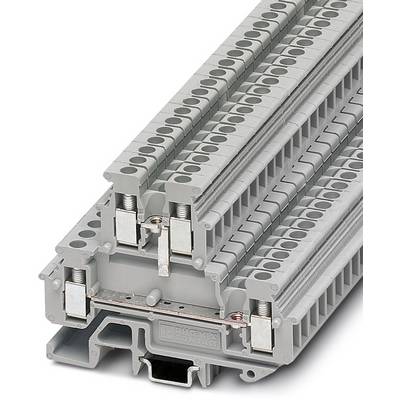

Feed-through terminal block MBKKB 2,5-BE 1414103 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 4.45 / piece)
€ 222.69
plus VAT.
Only 3 Set(s) available
Technical specifications
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Stripping length (max.)
7 mm
- Manufacturer part #
1414103
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MBKKB 2,5-BE
- Dim
(L x W x H) 62 x 5.2 x 48 mm
- Width
5.2 mm
- Height
48 mm
- Length
62 mm
- Contamination level
3
- Flammability rating
V2
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565351 Feed-through terminal block MBKKB 2,5-BE 1414103 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565351 Feed-through terminal block MBKKB 2,5-BE 1414103 Phoenix Contact
Description
Feed-through terminal block, Connection type: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Nominal current: 24 A, Nominal voltage: 500 V, Length: 62 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15, NS 32
