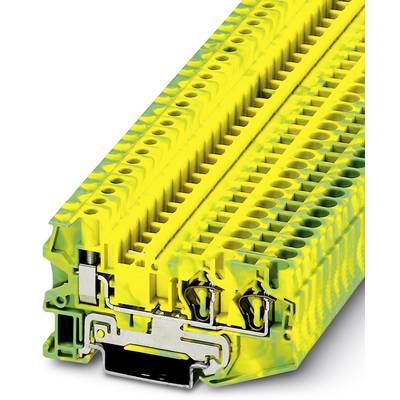

Feed-through terminal block STU 4-TWIN-PE 3033074 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Content
50 pc(s)
Datasheet (PDF)
Sales and shipping:
Total (€ 6.47 / piece)
€
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Green
Yellow
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3033074
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
STU 4-TWIN-PE
- Dim
(L x W x H) 74.4 x 6.2 x 42.8 mm
- Width
6.2 mm
- Height
42.8 mm
- Length
74.4 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 565958 Feed-through terminal block STU 4-TWIN-PE 3033074 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565958 Feed-through terminal block STU 4-TWIN-PE 3033074 Phoenix Contact
Description
Feed-through terminal block, Connection type: Screw connection, Spring-cage connection, Cross section: 0.14 mm² - 6 mm², AWG :28- 12, Width: 6.2 mm, Color: green-yellow, Mounting: NS 35/7,5, NS 35/15
