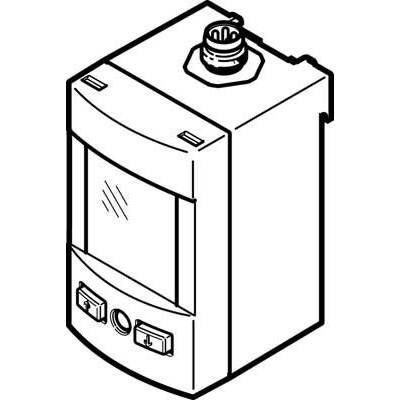

FESTO Pressure sensor M12 2x PNP SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M12U
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Outputs
2x PNP
Type
SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M12U
Min. operating voltage
20 V DC
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
Highlights & Details
Pressure sensor SPAU-P10R-H-G18 FD-L-PNLK-PNVBA-M12U
Technical specifications
- Weight: 70 g
- Max. output current 100 mA
- Electrical connection: Plug, round design, M12 x 1, 4-pin
- Rise time: 3 ms
- Mounting type: with top-hat rail
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M12U
- Min. operating voltage
20 V DC
- Max. operating voltage
30 V DC
- Operating voltage
20 - 30 V DC
- Outputs
2x PNP
- Model
Piezoresistive
- Features
LED indicator
- Size
M12
- Contact type
1 PNP
IP65
IP67
- Min. temperature
0 °C
- Max. temperature
+50 °C
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
Documents & Downloads
Datasheet
Datasheet 1937448 FESTO Pressure sensor M12 2x PNP SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M12U
User & Safety Instructions
User & Safety Instructions 1937448 FESTO Pressure sensor M12 2x PNP SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M12U
Description
Pressure sensor SPAU-P10R-H-G18 FD-L-PNLK-PNVBA-M12U for the monitoring of compressed air and non-corrosive gases, the fixing is done by means of DIN rail mounting, with display. Approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = (* to EU EMC Directive, * according to EU RoHS-RL), material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor
