Finder 13.81.8.230.0000 Electronic Shock Button

  • Item no.: 503128
  • Manufacturer no.: 13.81.8.230.0000
  • EAN: 8012823327341

Electronic shock switch for DIN rail mounting. If, after turning off the control voltage to the starting position Longer service life and low noise as a mechanical shock switch.

Full description
  • Warranty: 24 months
  • Manufacturer: Finder
  • Item no.: 503128
  • Manufacturer no.: 13.81.8.230.0000
  • EAN: 8012823327341

Electronic shock switch for DIN rail mounting. If, after turning off the control voltage to the starting position Longer service life and low noise as a mechanical shock switch.

Full description
  • Warranty: 24 months
  • Manufacturer: Finder
Technical data Description Downloads (13) Write New Review
  • Incandescent lamps: 3000 W, Fluorescent offset: 1000 W, uncompensated fluorescent: 1000 W halogen lamps: 3000 W
Type 13.81.8.230.0000
Operating voltage 230 V AC
Switch-on current 120 A
Contact type 1 maker
Contact material AgSnO2
Max. switching capacity 3700 VA
Mounting type DIN rail
Min. temperature -10 °C
Max. temperature +60 °C

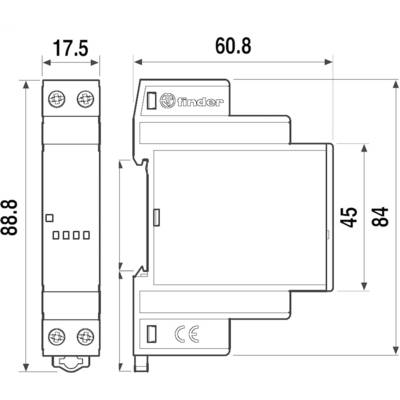

Width 17.5 mm
Height 60.8 mm
Depth 88.8 mm
Dim (W x H x D) 17.5 x 60.8 x 88.8 mm
Content 1 pc(s)
RoHS-compliant Yes
Nominal voltage (details) 230 V AC
Switching capacity (AC1) Max 3700 VA/(AC15) Max 750 VA
Switching current 16 A
Type 13.81.8.230.0000
Ambient temperature -10 - +60 °C
Contact type 1 closure
Operating voltage 230 V AC
Product type Impulse changeover switch

Technical data

  • Incandescent lamps: 3000 W, Fluorescent offset: 1000 W, uncompensated fluorescent: 1000 W halogen lamps: 3000 W
Type 13.81.8.230.0000
Operating voltage 230 V AC
Switch-on current 120 A
Contact type 1 maker
Contact material AgSnO2
Max. switching capacity 3700 VA
Mounting type DIN rail
Min. temperature -10 °C
Max. temperature +60 °C
Width 17.5 mm
