Finder 38.61.3.125.0060 Crossbar switch 110 V AC 6 A 1 change-over 10 pc(s)
Item no:
Product type
Crossbar switch
Contact type
1 change-over
Nominal voltage
110 V AC
Switching current (max.)
6 A
Type
38.61.3.125.0060
Datasheet (PDF)
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polarized
- Switching behavior of the drive: Monostable
- With forced contacts: No.
- Type of switch contact: Single contact
- Complete unit with base: Yes
- Product type
Crossbar switch
- Type
38.61.3.125.0060
- Connection
Spring-loaded connector
- Contact type
1 change-over
- Nominal voltage
110 V AC
- Switching current (max.)
6 A
- Features
+ LED
IP20
- Depth
76 mm
- Width
6.2 mm
- Height
93.6 mm
- Dim
(W x H x D) 6.2 x 93.6 x 76 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2474503 Finder 38.61.3.125.0060 Crossbar switch 110 V AC 6 A 1 change-over 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2474503 Finder 38.61.3.125.0060 Crossbar switch 110 V AC 6 A 1 change-over 10 pc(s)
Description

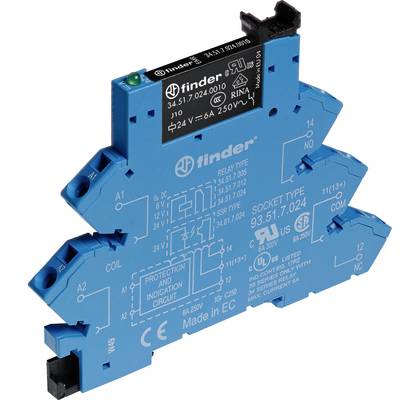

Coupling relays for DIN rail with tension spring terminals, 1 changer 6 A / 250 V AC, coil voltage 125 V AC, contact material AgNi, LED, residual current suppression and EMC interference suppression are integrated in the socket
