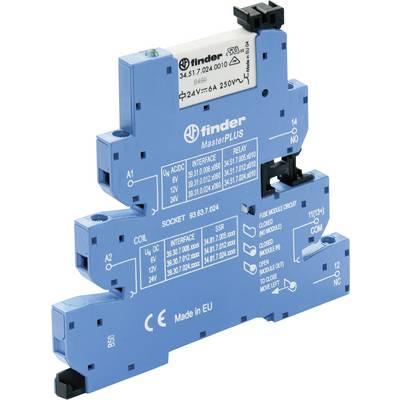

Finder 39.31.0.024.0060-1 - MasterPLUS Electromechanical Relay Interface Module, EMR, SPDT-CO 250V AC 6A
- Item no.: 506910
- Manufacturer no.: 39.31.0.024.0060-1
- EAN: 2050001389633
Sleek interface relay for DIN-rail with EMR output. Universal coupling relay in PLC inputs or PLC outputs for controlling actuators.
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Finder
- Item no.: 506910
- Manufacturer no.: 39.31.0.024.0060-1
- EAN: 2050001389633
Sleek interface relay for DIN-rail with EMR output. Universal coupling relay in PLC inputs or PLC outputs for controlling actuators.
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Finder
Technical data
| Type | 39.31.0.024.0060 |
|---|---|
| Connection | Screw terminals |
| Min. pick-up voltage | 19.2 V DC , 19.2 V AC |
| Max. pick-up voltage | 26.4 V DC , 26.4 V AC |
| Contact type | 1 change-over |
| Nominal voltage | 24 V DC , 24 V AC |
| Switching voltage (max.) | 400 V AC |
| Switching current (max.) | 6 A |
| IP rating | IP20 |
| Content | 1 pc(s) |
| Nominal voltage (details) | 24 Vdc/ac |
|---|---|
| Switching voltage | 250 V AC |
| Switching current | 6 A |
| Contact type | SPDT-CO |
| Product type | Crossbar switch |
Documents & Downloads
Finder 39.31.0.024.0060-1 - MasterPLUS Electromechanical Relay Interface Module, EMR, SPDT-CO 250V AC 6A
Sleek interface relay for DIN-rail with EMR output. Universal coupling relay in PLC inputs or PLC outputs for controlling actuators.
This text is machine translated.
Highlights & Details
- 24 Vdc/ac supply
- Space saving 6.2mm wide
- Connections for 16-way jumper link

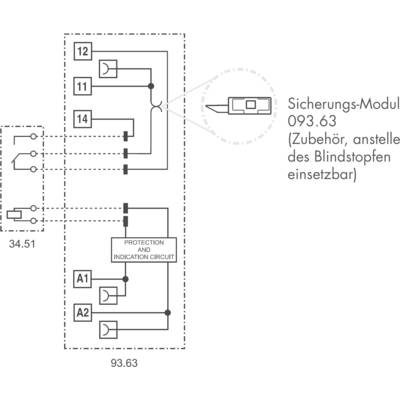

- Integral coil indication and protection circuit
- Secure retention and easy ejection by plastic clip
- Dual screw head (blade+cross) terminals
- 35mm DIN rail mounting (EN 60715)
- Warranty: 24 months
- Manufacturer: Finder
