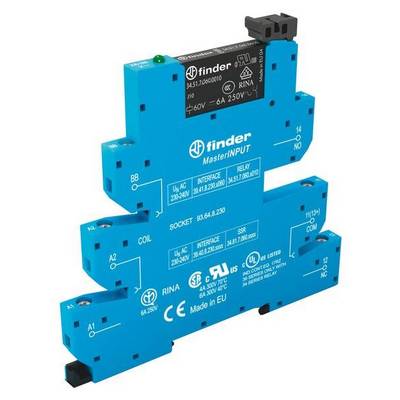

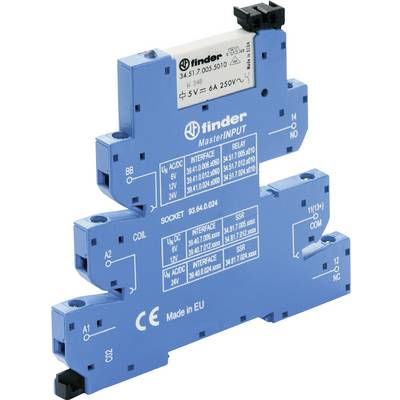

Finder 39.41.0.012.5060 - MasterINPUT Electromechanical Relay Interface Module, EMR, SPDT-CO 250V AC 6A

  • Item no.: 1217567
  • Manufacturer no.: 39.41.0.012.5060
  • EAN: 2050002363960

For correct connection of sensors to PLC input. Sensor connections on same coupling relay input with simple cable assignment. Bridgeable for multiple sensors/NOCs for sensors with 2 connections or when controlling via NOC BB = + (plus), A1 = single s…

  • Warranty: 24 months
  • Manufacturer: Finder
  • Item no.: 1217567
  • Manufacturer no.: 39.41.0.012.5060
  • EAN: 2050002363960

For correct connection of sensors to PLC input. Sensor connections on same coupling relay input with simple cable assignment. Bridgeable for multiple sensors/NOCs for sensors with 2 connections or when controlling via NOC BB = + (plus), A1 = single s…

  • Warranty: 24 months
  • Manufacturer: Finder
Type 39.41.0.012.5060
Connection Screw terminals
Min. pick-up voltage 9.6 V DC , 9.6 V AC
Max. pick-up voltage 13.2 V DC , 13.2 V AC
Contact type 1 change-over
Nominal voltage 12 V DC , 12 V AC
Switching voltage (max.) 400 V AC
Switching current (max.) 6 A
IP rating
IP20
Content 1 pc(s)
Output EMR relays
Switching capacity (AC1) 1500 VA
Switching voltage 250 V AC
Switching current 6 A
Contact type SPDT-CO
Temperature range -40 - +70 °C
Product type Crossbar switch

Technical data

Type 39.41.0.012.5060
Connection Screw terminals
Min. pick-up voltage 9.6 V DC , 9.6 V AC
Max. pick-up voltage 13.2 V DC , 13.2 V AC
Contact type 1 change-over
Nominal voltage 12 V DC , 12 V AC
Switching voltage (max.) 400 V AC
Switching current (max.) 6 A
IP rating
IP20
Content 1 pc(s)
