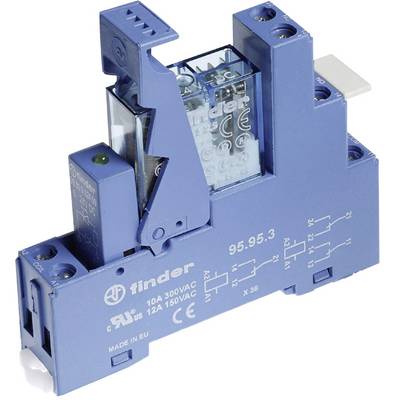

Finder 49.52.8.012.0060 Relay Interface Module DPDT-CO 12 V AC IP20

  • Item no.: 503260
  • Manufacturer no.: 49.52.8.012.0060
  • EAN: 8012823118017

Coupler relay Universal 15.5 mm wide. "Positive isolation" to VDE 0106 / T 101

  • Warranty: 24 months
  • Manufacturer: Finder
  • Item no.: 503260
  • Manufacturer no.: 49.52.8.012.0060
  • EAN: 8012823118017

Coupler relay Universal 15.5 mm wide. "Positive isolation" to VDE 0106 / T 101

  • Warranty: 24 months
  • Manufacturer: Finder
Type 49.52.8.012.0060
Connection Screw terminal
Min. pick-up voltage 9.6 V AC
Max. pick-up voltage 13.2 V AC
Contact type 2 change-overs
Contact material AgNi
Nominal voltage 12 V AC
Switching voltage (max.) 250 V AC
Switching current (max.) 8 A
Max. switching capacity 2000 VA
Durability (AC/DC) 10 x 106/20 x 106 Switching cycles:
Creepage distance (coil/clips) 8 mm
R(coil) 80 Ω
Features + varistor , + LED
IP rating
IP20
Max. temperature +70 °C
Min. temperature -40 °C

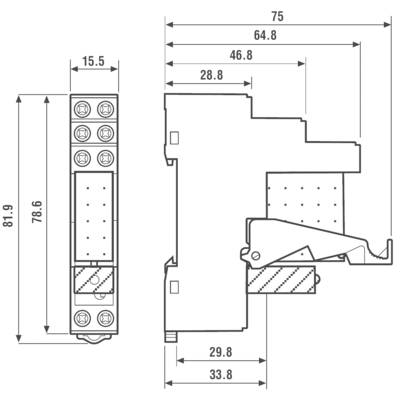

Length 81.9 mm
Width 15.5 mm
Height 75 mm
Content 1 pc(s)
Type AC-Coil
Nominal voltage (details) 12 V AC
Nominal current (details) 8 A
Switching capacity (AC1) 8 A/250 V AC
Type 49.52.8.012.0060
Air/creeping distance (between coil and contacts) 8 mm
Contact type DPDT-CO
Product type Relay component

Technical data

Type 49.52.8.012.0060
Connection Screw terminal
Min. pick-up voltage 9.6 V AC
Max. pick-up voltage 13.2 V AC
Contact type 2 change-overs
Contact material AgNi
Nominal voltage 12 V AC
Switching voltage (max.) 250 V AC
Switching current (max.) 8 A
Max. switching capacity 2000 VA
