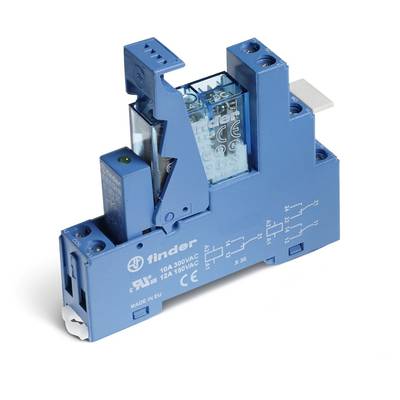

Finder 49.61.9.012.0050 Relay Interface Module 1 changeover contact 12 V DC IP20

  • Item no.: 505528
  • Manufacturer no.: 49.61.9.012.0050
  • EAN: 2050000156717

Coupler relay Universal 15.5 mm wide. "Positive isolation" to VDE 0106 / T 101

  • Warranty: 24 months
  • Manufacturer: Finder
  • Item no.: 505528
  • Manufacturer no.: 49.61.9.012.0050
  • EAN: 2050000156717

Coupler relay Universal 15.5 mm wide. "Positive isolation" to VDE 0106 / T 101

  • Warranty: 24 months
  • Manufacturer: Finder
Type 49.61.9.012.0050
Connection Screw terminal
Contact type 1 change-over
Contact material AgCdO
Nominal voltage 12 V DC
Switching voltage (max.) 400 V AC
Switching current (max.) 16 A
Max. switching capacity 4000 VA
Electrical lifespan 100 x 103 switching operations
Durability (AC/DC) 10 x 106/20 x 106 Switching cycles:
Creepage distance (coil/clips) 8 mm
R(coil) 220 Ω
Coil voltage rating 650 mW
Features + flyback diode , + LED
IP rating
IP20
Max. temperature +70 °C
Min. temperature -40 °C
Length 81.9 mm
Width 15.5 mm
Height 75 mm
Content 1 pc(s)
Nominal voltage (details) 12 V DC
Nominal current (details) 16 A
Switching capacity (AC1) 4000 VA
Switching current (DC1) Max 16 A
Air/creeping distance (between coil and contacts) 8 mm
Contact type 1 changeover contact
Product type Relay component

Technical data

Type 49.61.9.012.0050
Connection Screw terminal
Contact type 1 change-over
Contact material AgCdO
Nominal voltage 12 V DC
Switching voltage (max.) 400 V AC
Switching current (max.) 16 A
Max. switching capacity 4000 VA
Electrical lifespan 100 x 103 switching operations
Durability (AC/DC) 10 x 106/20 x 106 Switching cycles:
