Type 56.34.9.024.0040
Coil nominal voltage 24 V DC
Min. pick-up voltage 20.4 V DC
Max. pick-up voltage 26.4 V DC
Control mode monostable, 1 coil
R(coil) 490 Ω

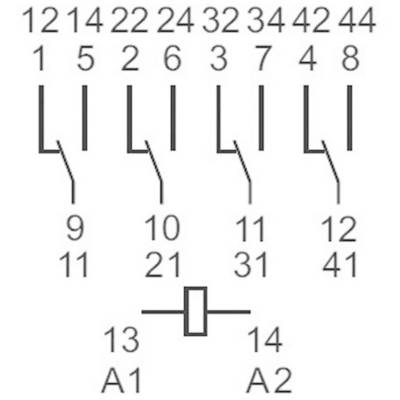

Contact type 4 change-overs
Contact material AgNi
Switching voltage (max.) 400 V AC
Switching current (max.) 12 A
Max. switching capacity 3000 VA
Connection Type C CEE 7/16 plug 4.8 mm
IP rating
Relay protection type RT I
Min. temperature -40 °C
Max. temperature +70 °C

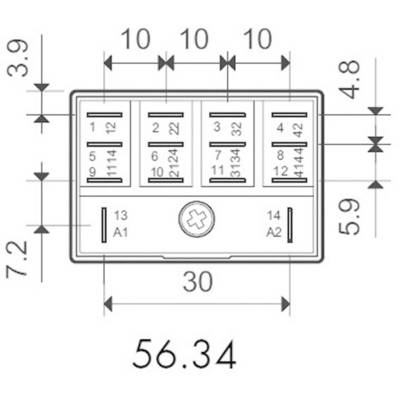

Length 40.8 mm
Width 27.7 mm
Height 37.1 mm
Content 1 pc(s)
RoHS-compliant Yes
Nominal voltage (details) 24 V DC
Voltage range 20.4 - 26.4 V
Type 56.34.9.024.0040
Contact type 4PDT-CO
Product type Plug-in relay

Technical data

Type 56.34.9.024.0040
Coil nominal voltage 24 V DC
Min. pick-up voltage 20.4 V DC
Max. pick-up voltage 26.4 V DC
Control mode monostable, 1 coil
R(coil) 490 Ω
Contact type 4 change-overs
Contact material AgNi
Switching voltage (max.) 400 V AC
Switching current (max.) 12 A
