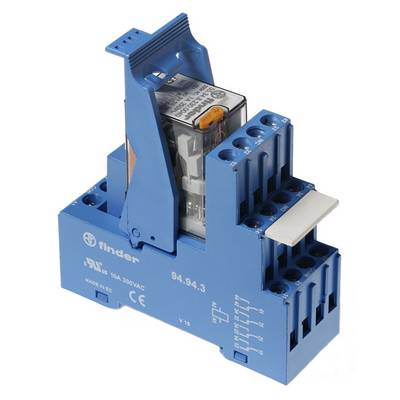

Finder 59.34.9.012.0050 7A Relay Interface Module 4 changeover 12 V DC IP20

  • Item no.: 503133
  • Manufacturer no.: 59.34.9.012.0050
  • EAN: 2050000149665

Coupling relay 27 mm wide EMV-wiring with LED and snubber diode (+ on terminal A1).

  • Warranty: 24 months
  • Manufacturer: Finder
  • Item no.: 503133
  • Manufacturer no.: 59.34.9.012.0050
  • EAN: 2050000149665

Coupling relay 27 mm wide EMV-wiring with LED and snubber diode (+ on terminal A1).

  • Warranty: 24 months
  • Manufacturer: Finder
Type 59.34.9.012.0050
Min. pick-up voltage 9.6 V DC
Max. pick-up voltage 13.2 V DC
Contact type 4 change-overs
Contact material AgNi
Nominal voltage 12 V DC
Switching voltage (max.) 250 V AC
Switching current (max.) 7 A
Max. switching capacity 1750 VA
Electrical lifespan (AC1) 200 x 103 Switching cycles:
Durability (AC/DC) 20 x 10650 x 106 Switching cycles:
R(coil) 140 Ω
IP rating
IP20
Length 79.7 mm
Width 27 mm
Height 86.1 mm
Content 1 pc(s)
Type DC-coil
Nominal voltage (details) 12 V DC
Nominal current (details) 7 A
Switching capacity (AC1) 7 A/250 V AC
Voltage range 9.6 - 13.2 V
Type 59.34.9.012.0050
Contact type 4 changeover
Product type Relay component

Technical data

Type 59.34.9.012.0050
Min. pick-up voltage 9.6 V DC
Max. pick-up voltage 13.2 V DC
Contact type 4 change-overs
Contact material AgNi
Nominal voltage 12 V DC
Switching voltage (max.) 250 V AC
Switching current (max.) 7 A
Max. switching capacity 1750 VA
Electrical lifespan (AC1) 200 x 103 Switching cycles:
