Technical data
- Relay degree of protection: RT I
Type | 60.12.8.024.0040 |
---|---|
Coil nominal voltage | 24 V AC |
Min. pick-up voltage | 19.2 V AC |
Max. pick-up voltage | 26.4 V AC |
Control mode | monostable, 1 coil |
R(coil) | 74 Ω |
Contact type | 2 change-overs |
Contact material | AgNi |
Switching voltage (max.) | 400 V AC |
Switching current (max.) | 10 A |
Max. switching capacity | 2500 VA |
---|---|
Connection | 8-pin jack connector |
Electrical lifespan | (AC/DC) 200 x 103 Switching cycles: |
Durability | (AC/DC) 20 x 10650 x 106 Switching cycles: |
Features | + test button (lockable) , + mechanical display |
Min. temperature | -40 °C |
Max. temperature | +70 °C |
Length | 36.4 mm |
Width | 32.5 mm |
Height | 54.2 mm |
Dim | (L x W x H) 36.4 x 32.5 x 54.2 mm |
Content | 1 pc(s) |
RoHS-compliant | Yes |
Type | AC-coil |
Nominal voltage (details) | 24 V AC |
Nominal current (details) | 10 A |
Switching capacity | (AC1) 10 A/250 V AC |
Contact type | DPDT-CO |
Temperature range | -40 - +70 °C |
Product type | Plug-in relay |
Documents & Downloads

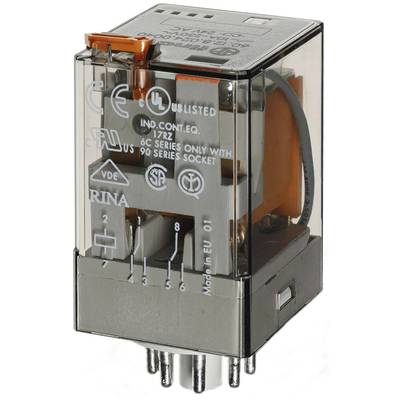

Finder 60.12.8.024.0040 Plug-in relay 24 V AC 10 A 2 change-overs 1 pc(s)
Highlights & Details
- 10A DPDT-CO AgNi contacts
- 8-pin plug in
- UL Listing (certain relay/socket combinations
- Lockable test button with mechanical flag indicator
- 90 series sockets
- Coil EMC suppression
- European Patent
- Warranty: 24 months
- Manufacturer: Finder
Comments
Approvals: VDE, UL, CSA, RINA, GOST, FI, IMQ, S, Nemko, Semko, BEAB, operating details for voltage range at 20 °C.Frequently bought together
