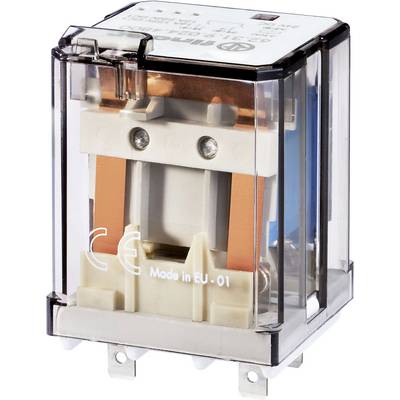

Finder 62.31.9.060.4800 Plug-in relay 60 V DC 16 A 1 maker 10 pc(s)
Item no:
Product type
Plug-in relay
Coil nominal voltage
60 V DC
Contact type
1 maker
Switching current (max.)
16 A
Connection
Connector
Total (€ 16.81 / piece)
€ 168.06
plus VAT.
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polarized
- Switching behavior of the drive: Monostable
- With forced contacts: No.
- Type of switch contact: Single contact
- Complete unit with base: No.
- Product type
Plug-in relay
- Type
62.31.9.060.4800
- Coil nominal voltage
60 V DC
- Contact type
1 maker
- Switching current (max.)
16 A
- Connection
Connector
IP20
- Width
38.2 mm
- Height
49.1 mm
- Depth
35.8 mm
- Dim
(W x H x D) 38.2 x 49.1 x 35.8 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
Description
Power Plug relay with Blowing magnet for switching high inductive and Ohm's DC loads. 1 normally open contact with double break for 16 A/250 V AC AC1, contact opening travel 4.2 mm, contact material AgSnO2, max. Switch-on current 100 A - 5 ms, with Faston 187 connections (4.8 x 0.5 mm), coil data 60 V DC, 1.3 W, 2760 ohm. Relays Degree of protection: RT I
