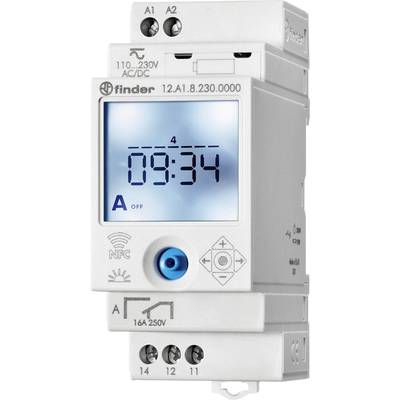

Finder 12.A1.8.230.0000 DIN rail mount timer 230 V AC Astronomical, Week settings
EAN:
Part number:
Item no:
Product type
DIN rail mount timer
Type
Astronomical
Week settings
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 126.05
-17 %
€ 105.03
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Timer with astro-function, series 12
- Astronomic controlled on and off switching
- Time-controlled switching on and off
- Pulse function from 1 second to 59 seconds
- Holiday program
Technical specifications
- Product type
DIN rail mount timer
- Type
12.A1.8.230.0000
- Type
Astronomical
Week settings
- No. of switching intervals
50
- Operating voltage
230 V AC
- Min. operating voltage
90 V DC
90 V AC
- Max. operating voltage
264 V DC
264 V AC
- Operating voltage
90, 90 - 264, 264 V DC, V AC
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Max. switching capacity
750 VA
- Min. temperature
-20 °C
- Max. temperature
+50 °C
IP20
- Width
35 mm
- Height
88.8 mm
- Depth
56.5 mm
- Dim
(W x H x D) 35 x 88.8 x 56.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Factory colour
Multicolour
- Weight
0
DIN rail
35
60.8 mm
88.8 mm
Change-over contact (NO/NC)
2
AC
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1419702 Finder 12.A1.8.230.0000 DIN rail mount timer 230 V AC Astronomical, Week settings
User & Safety Instructions
User & Safety Instructions 1419702 Finder 12.A1.8.230.0000 DIN rail mount timer 230 V AC Astronomical, Week settings
Information
Information 1419702 Finder 12.A1.8.230.0000 DIN rail mount timer 230 V AC Astronomical, Week settings
Description
This timer switch is in the position to sun rise/set on the basis of the location coordinates (latitude and longitude). The location coordinates are simple, for most countries via postal codes, adjustable. Early or delayed switching of the astronomical switching times by up to 90 minutes in 1-minute steps can be selected. The astronomical-controlled ON/OFF function is for channel A pre-set.
Application areas: Komunale lighting (streets, squares, monuments, wells, etc.), garden, parking, shops, illuminated signs, irrigation systems, heating and cooling systems.
This text is machine translated.
Application areas: Komunale lighting (streets, squares, monuments, wells, etc.), garden, parking, shops, illuminated signs, irrigation systems, heating and cooling systems.
This text is machine translated.
Hints
To program via NFC interface, you need the Finder Toolbox app for Android (Google Play Store) or the Finder Toolbox NFC app for iOS (app store). Approvals: EAC.
