FLIR CM65 Clamp meter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 6000

  • Item no.: 2179969
  • Manufacturer no.: CM65
  • EAN: 0793950370650

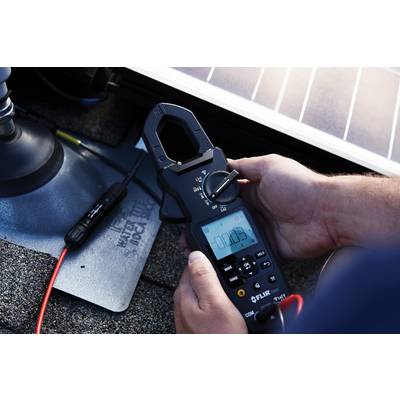

The CM65 is a rugged clamp meter designed specifically to meet the challenges of installing, maintaining and repairing solar power systems. This clamp-on ammeter is supplied with MC4 quick-connect test leads that improve the accuracy and safety of di…

  • Warranty: 24 months
  • Manufacturer: FLIR
  • Item no.: 2179969
  • Manufacturer no.: CM65
  • EAN: 0793950370650

The CM65 is a rugged clamp meter designed specifically to meet the challenges of installing, maintaining and repairing solar power systems. This clamp-on ammeter is supplied with MC4 quick-connect test leads that improve the accuracy and safety of di…

  • Warranty: 24 months
  • Manufacturer: FLIR
  • Protection class: IP40
  • Storage: 8 GB
Voltage DC reading range (max.) 1000 V
V AC reading range (max.) 1000 V
A DC reading range (max.) 600 A
Amperage reading range AC (max.) 600 A
Reading range - resistance up to 6000 kΩ
Frequency reading range 50 - 500 Hz
Temperature -40 to +400 °C
Basic accuracy 1.5 %
Measurement type True RMS
Power supply (details) 3x batteries type AA
Height 40 mm
Width 80 mm
Length 251 mm
Weight 300 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
Current reading AC/DC
Type CM65
Display Digital
Display (counts) 6000
Features Data logger
Opening range of current clamps 30 mm
Product type Clamp meter

Technical data

  • Protection class: IP40
  • Storage: 8 GB
Voltage DC reading range (max.) 1000 V
V AC reading range (max.) 1000 V
A DC reading range (max.) 600 A
Amperage reading range AC (max.) 600 A
Reading range - resistance up to 6000 kΩ
Frequency reading range 50 - 500 Hz
Temperature -40 to +400 °C
Basic accuracy 1.5 %
Measurement type True RMS
Power supply (details) 3x batteries type AA
