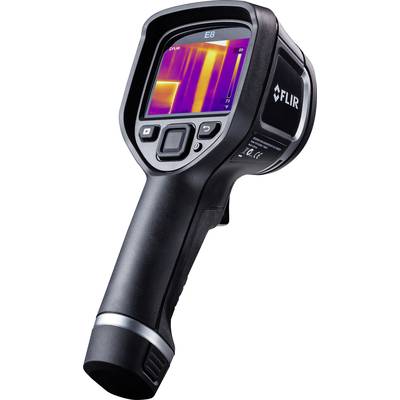

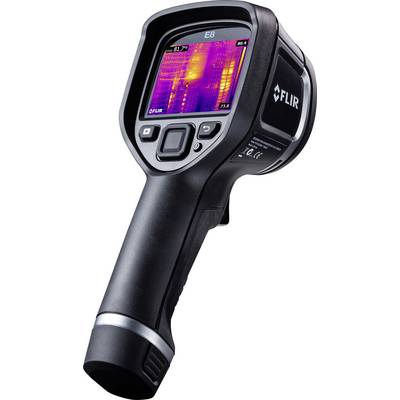

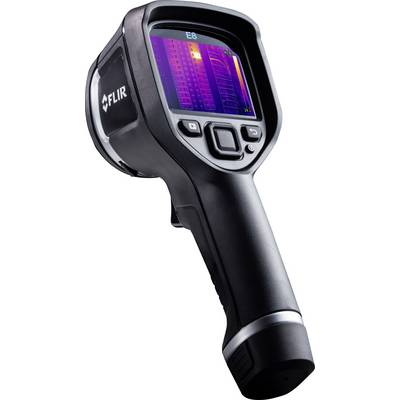

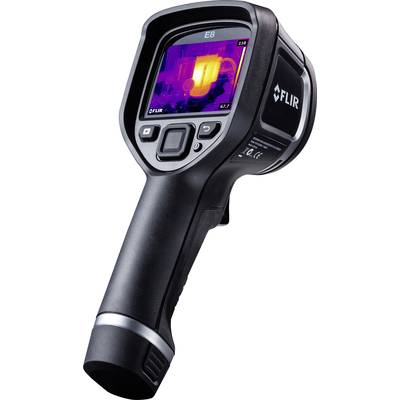

FLIR E8xt IR camera -20 up to 550 °C 320 x 240 Pixel 9 Hz MSX®, Wi-Fi
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 3,461.34 / piece)
€ 3,461.34
plus VAT.

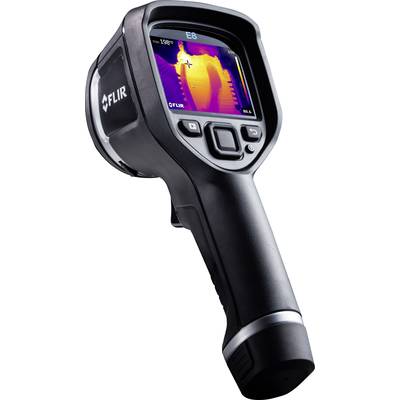

Infrared camera FLIR E8xt WiFi
Highlights & Details
- 9 Hz Thermal imaging camera
- Temperature reading range -20 up to 550 °C
- 320 x 240 Pixel Bolometer matrix
- Thermal sensitivity 50 mK
Technical specifications
- Type
E8xt
- Product type
IR camera
- Bolometer array
320 x 240 Pixel
- Interfaces
Micro USB
Wi-Fi
- Temperature reading range (max.)
550 °C
- Colour schemes
3
- Temperature reading range (min.)
-20 °C
- Optics
45° × 34°
- Frame rate
9 Hz
- Display resolution
320 x 240 Pixel
IP54
- Thermal sensitivity
50 mK
- Dim
(L x W x H) 244 x 95 x 140 mm
- Memory units
500
- Temperature resolution
0.06 °C
- Emission level (max.)
1.0
- Emission level (min.)
0.1
- Focus
Fixed-focus
- Geometric resolution (IFOV)
2.6 mrad
- Weight
575 g
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Temperature reading range
-20 up to 550 °C
- Min. focusing distance
50 cm
- Width
95 mm
- Height
140 mm
- Length
244 mm
- Power supply (details)
3.7 V Li-ion battery
- Features
MSX®
Wi-Fi
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 1932054 FLIR E8xt IR camera -20 up to 550 °C 320 x 240 Pixel 9 Hz MSX®, Wi-Fi
User & Safety Instructions
User & Safety Instructions 1932054 FLIR E8xt IR camera -20 up to 550 °C 320 x 240 Pixel 9 Hz MSX®, Wi-Fi
Description

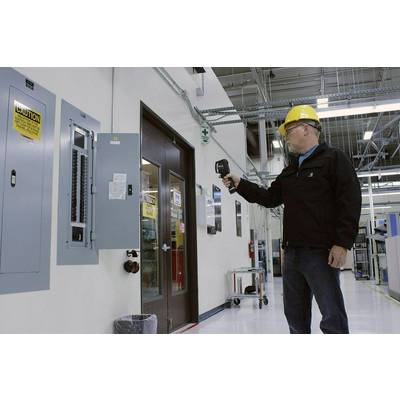

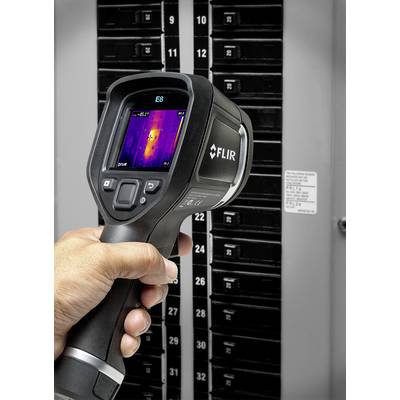

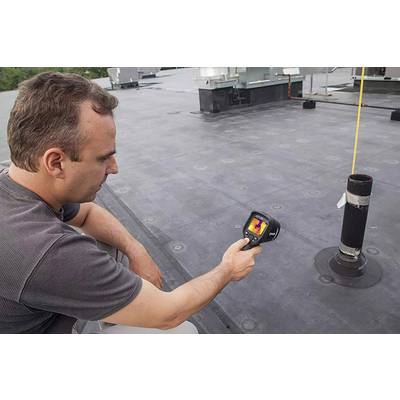

The Flir E8xt combines all the key parameters for reliable, ergonomic and cost-effective measurement. With its three-stage process, the Flir E8xt is easy to use and saves you time. Simply: Aim – Trigger – Evaluate. The Flir E8xt thermography camera is the ideal temperature measurement tool for quick and precise spot measurements in electrical and building inspection. Three different colour schemes are available for precise analysis: iron, rainbow and black/white. With the MSX® function (Multi Spectral Dynamic Imaging), the real image and IR image can be gradually overlaid for a more detailed display. The jpg-thermal images can be stored with all radiometric data via WiFi on tablets and smartphones or directly via the micro-USB interface on the computer. Each inspection image can be evaluated quickly and easily with the free evaluation and analysis software ''FLIR Tools'' (can be downloaded online).
This text is machine translated.
This text is machine translated.

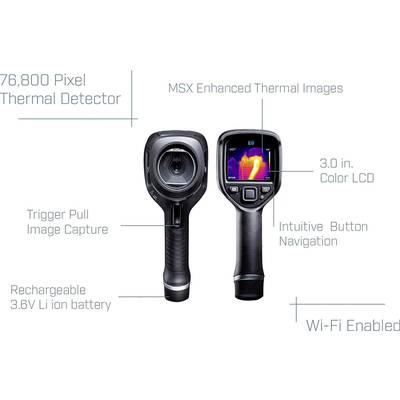

Features
- Colour display 7.6 cm(3")
- Real image display
- Integrated image gallery
- Adjustable emission level
- Integrated material table
- Automatic correction of the degree of reflection
- Measurement point measuring method
- Micro USB interface
- Exchangeable Li-ion battery
- Auto power-off.
Scope of delivery
- Carrying case
- 1 x Li-ion battery
- USB cable
- Charger with mains plug for EU, GB and Australia
- Short user guidelines
Hints
The latest FLIR Tools software can be downloaded free of charge after registration.
System requirements
- Windows®/MAC operating system · Internet connection for software download.
