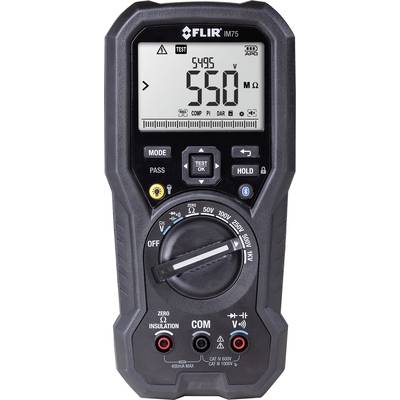

FLIR IM75 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V
EAN:
Part number:
Item no:
Highlights & Details
Insulation test and DMM combination device in 75
- CAT III 1000 V, CAT IV 600 V
- Insulation resistance measurement: 50, 100, 250, 500 and 1000 V
- Bluetooth
Technical specifications
- Insulation resistance measurement: 50, 100, 250, 500 and 1000 V
- Bluetooth range: 10 m
- Protection class IP 54
- Internal memory: 99.
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (max.)
1000 V
- Reading range - capacity
10 mF
- Frequency reading range
40 kHz
- Measurement type (details)
True RMS
- Power supply (details)
6 x AAA batteries
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Type
IM75
- Display
Digital
- Features
Data logger
Description
The FLIR IN THE 75 is a first-class and portable insulation tester and advanced digital multi-functional multimeter for installation, troubleshooting and maintenance experts. In the 75 has several special insulation modes, including: Polarisation Index, dielectric absorption and earthing resistance insulation tests can be carried out continuously and over a specific period of time. The measuring device has meters link® for the integration of electrical measurements in infrared images from FLIR infrared cameras were recorded, and Bluetooth ® for remote display of the measured values in real time.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Bag
- Belt
- CAT IV insulated alligator clips
- CAT IV silicone test lead
