Buy Fluke 6500-2 Electrical tester Calibrated to (ISO standards) VDE standard 0413

Electrical testing device with digital display. Screen display reads: 'RPE 0.03 Ω PASS'. Various connections and control elements visible.

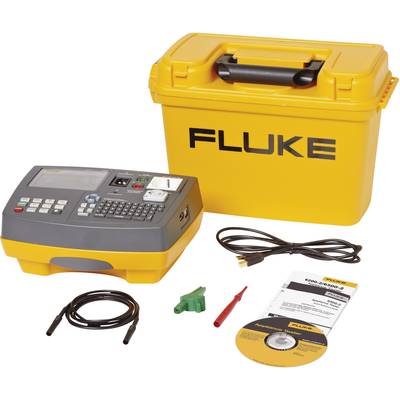

A portable electric testing device with accessories, including cable, CD and yellow case. Device button shows "Fluke".

Two cables with black plugs, one green crocodile clip and one red test probe. Used for electrical measurement.

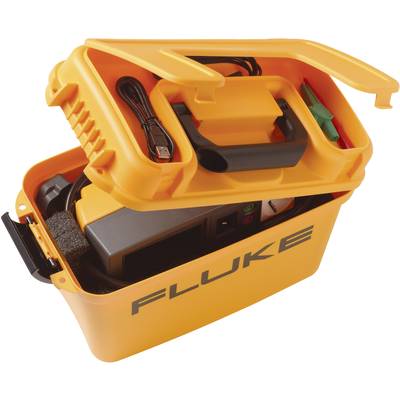

Orange toolbox with 'Fluke' printed on it. Opened, showing cables and a device. Used for electrical measurements.

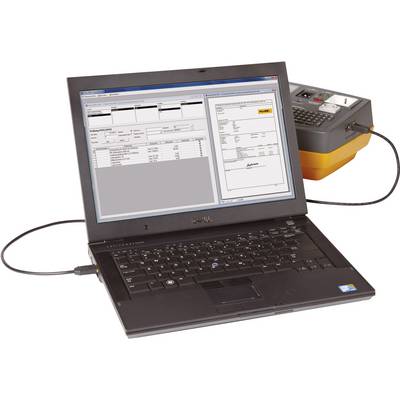

Laptop with open software for measurement data documentation, connected to a testing device. Main window displays data and graphs.

A hand holds a portable, yellow device from underneath. The device has a cable and four black rubber feet.

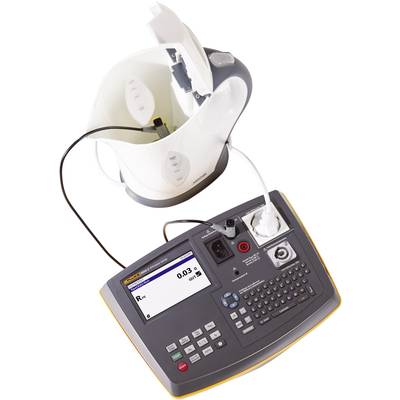

A kettle is standing on an electrical measuring device. The device measures energy consumption and displays a value of 0.03 kWh on the screen.

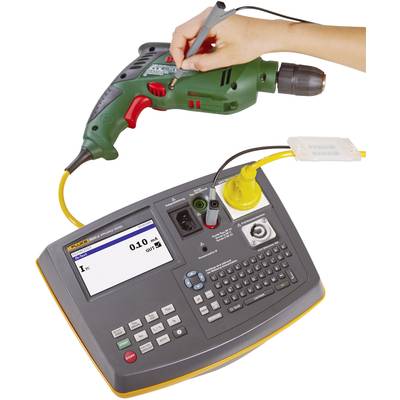

A hand is testing a green drill with a portable electrical testing device. The display shows a measured value and offers button inputs.

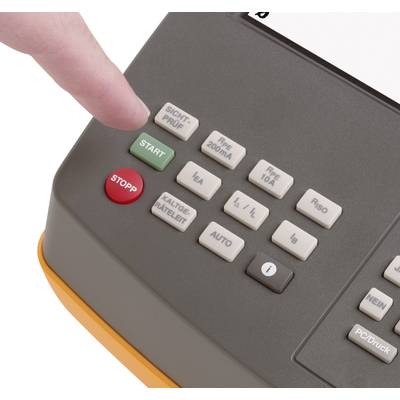

A finger presses the green 'START' button on an electronic device, next to a red 'STOP' button and several function keys.

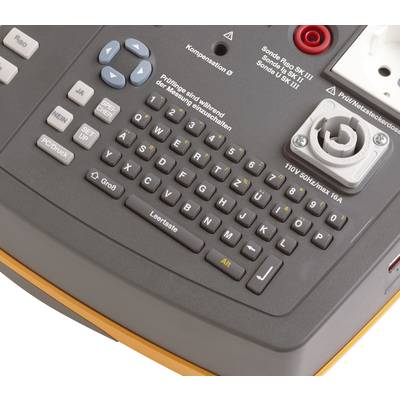

Keyboard and control unit with technical operating elements and switches, possibly part of a test stand or measuring device.

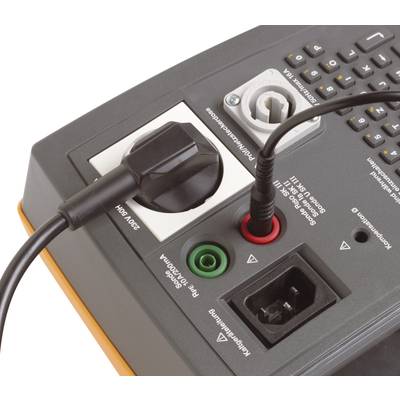

A measuring device in close-up view, featuring multiple ports, including power connection and sockets for various measurement cable types.

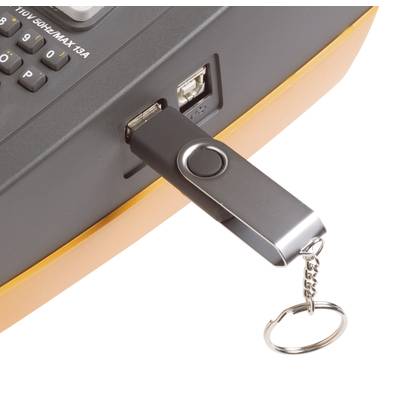

USB drive connected to an orange safe with display and keypad.

1/12

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 1,940.34 / piece)

€ 1,940.34

plus VAT.

Report legal concerns

Highlights & Details

Portable device tester

Fast, one-button operation.
Lightweight
Robust

Technical specifications

Product type: Electrical tester

: ISO standards

Reading category: CAT II 300 V

Interfaces: USB

Dim: (L x W x H) 200 x 275 x 114 mm

Weight: 3.13 kg

Reading range (VDE): Earth leakage resistance
Insulation resistance
Leakage current
Continuity
Touch voltage
Voltage
Current
Power

DIN standard: DIN EN 61557

Display type: Digital (LCD)

Calibration service: 5 calibration values per area

Width: 275 mm

Height: 114 mm

Length: 200 mm

Test procedure: manual

Voltage supply: 230 V/AC

Memory (space): 1000

Memory: Yes

Type: 6500-2

VDE standard: 0413

Memory: 1000 internal records

Display (details): LCD

Interfaces: USB

Standards: EN61557-1: 1997, EN61557-2: 1997, EN61557-4: 1997, EN61557-6: 1997, DIN VDE0404-2

Documents & Downloads

Datasheet

Datasheet 1238284 Fluke 6500-2 Electrical tester Calibrated to (ISO standards) VDE standard 0413

User & Safety Instructions

User & Safety Instructions 1238284 Fluke 6500-2 Electrical tester Calibrated to (ISO standards) VDE standard 0413

Description

The device tester Fluke 6500-2 is characterised by low weight, small size, one-button operation and improved automatic tests. In this way, you can increase the number of tests on mobile devices per day. With the device tester 6500-2, measurements can be carried out without loss of quality in the results faster. Each of the pre-test routines by pressing one key. This is much easier than the device via menu or the selection of multiple functions and enables faster and more efficient working. The model 6500-2 is also equipped with custom test routines and alphanumeric keyboard for fast data entries. The portable device tester 6500-2 is extremely compact and can easily be carried when working on site. The enclosed stable hard-shell case protects the device during transport and also offers space for accessories and other devices. This portable device tester is - as all devices from Fluke - robust and designed for use on site. With a portable device tester from Fluke, they have a universal solution with all functions for testing of portable devices.

This text is machine translated.

Features

One-button operation: Each test function is started via a special button
Conforms to the new standards DIN EN 50678 (VDE 0701) and DIN EN 50699 (VDE 0702)
Preset values for good/bad allow time savings
Large backlit display for easy reading
Single mains socket for connecting devices
Separate IEC power socket for easy testing of cold equipment lines
Detachable test leads for rapid on-site replacement
Built-in handle
USB port for data transfer
Integrated keyboard for fast data entry
Storage of measurement data on USB storage media and transfer to a PC
Large graphic display with backlighting
Pre-set automatic test sequences for increased user-friendliness
Faster data entry with integrated codes for location, measurement point, and description
Memory check function for more on-site control
USB port for data transfer.
This text is machine translated.

Scope of delivery

Portable device tester Fluke 6500-2
User manual on CD
Quick guide
Carrying case made of hard plastic
Test lead
Probe tip
Alligator clip
Power cord
USB stick
USB cable.

Hints

Please note the scope of calibration the under "Downloads" stored pattern calibration certificate.

Your right to cancel does not apply to this product.
