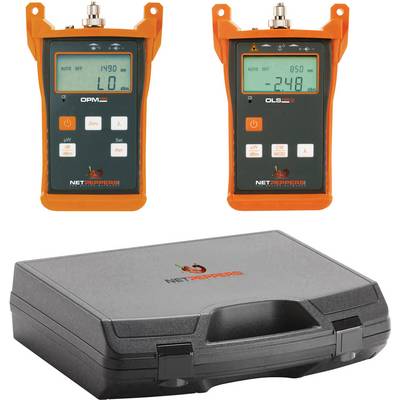

Glass fibre tester NP-OLT-SM NetPeppers NP-OLT-SM Networks, Telecom
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 575.63 / piece)
€ 575.63
plus VAT.
Highlights & Details
Glasfaserdampfungskit OLT 100 SM (single mode)
Technical specifications
- Oil 150 SM: calibrated shaft lengths: 1310 nm/1550 n
- Output power: ≥-7 dBm
- Signal type: CW, 270 Hz, 1 KHz, 2 KHz
- Emitter Type: FP-LD
- Connection: FC/PC (AC adapter for SC/ST)
- Spectral width: ≤ 5 Nm
- Stability: ±0.05 dB/15 min, ± 0.10 dB/
- 8 hr@ 1310/1550 nm
- Supported glass fiber types: single mode glass fibers
- OPM 100: Calibrated Wavelength: 850, 1300, 1310, 1490, 1550 & 1625 nm
- Power range: -70 dBm to +6 dBm
- Supported glass fiber types: single mode and multimode
- Sensor type: InGaAs
- Accuracy (dB): ± 5% ± 0.01 nW (± 0.5dB @ 850 nm)
- Resolution: 0.01 dB
- Signal detection: 270, 1K, 2K Hz
- Units of measurement: W/mW/μW/dBm/dB(REF)
- Power supply: 9V alkaline battery (450 mAh).
- Product type
Glass fibre tester
- Display
LCD
- Optical display
Yes
- Test sockets
FC socket
SC socket
ST socket
- Dim
(W x H x D) 75 x 145 x 25 mm
- Weight
300 g
- Range
Networks
Telecom
- Width
75 mm
- Height
145 mm
- Depth
25 mm
- Type
NP-OLT-SM
Documents & Downloads
Datasheet
Datasheet 1881907 Glass fibre tester NP-OLT-SM NetPeppers NP-OLT-SM Networks, Telecom
User & Safety Instructions
User & Safety Instructions 1881907 Glass fibre tester NP-OLT-SM NetPeppers NP-OLT-SM Networks, Telecom
Description
The modern laser light sources of the OLS series guarantee a fast measurement without having to plan long warm-up times for exact and reproducible results. You can directly start your measurement with the laser light sources of the OLS series. The OLS150MM supports 850/1300nm wavelengths and displays the quality of the fiber paths together with the OPM100. The OLS150MM is equipped with a 2.5 mm interface and is therefore compatible with SC, ST and FC plugs. In addition, the delivery includes a 1.25 mm adapter for LC and MU-plug. The OLS150MM fits with its compact shape and only 300g well in the hand.
The OPM100 is used to measure optical power level (dBm) in access, telecommunications and CATV fiber optic networks. In addition, the level meter can also be used in conjunction with an optical laser source such as the OLS150MM or OLS150SM of NetPeppers to determine the insertion loss. The OPM100 is equipped with a 2.5 mm interface and is therefore compatible with SC, ST and FC plugs. The OPM100 fits with its compact shape and only 300g well in the hand.
The rubber sheath protects the tester from damage. The included lanyard (strap) allows the device to be hung around your neck safely and you don't have to hold it in your hand all the time.
This text is machine translated.
The OPM100 is used to measure optical power level (dBm) in access, telecommunications and CATV fiber optic networks. In addition, the level meter can also be used in conjunction with an optical laser source such as the OLS150MM or OLS150SM of NetPeppers to determine the insertion loss. The OPM100 is equipped with a 2.5 mm interface and is therefore compatible with SC, ST and FC plugs. The OPM100 fits with its compact shape and only 300g well in the hand.
The rubber sheath protects the tester from damage. The included lanyard (strap) allows the device to be hung around your neck safely and you don't have to hold it in your hand all the time.
This text is machine translated.
Features
- Ac Adapter for SC/ST connector
- Robust design for field applications
- Long service life
- Easy to use
Scope of delivery
- FC socket
- LC socket
- SC socket
- ST socket
