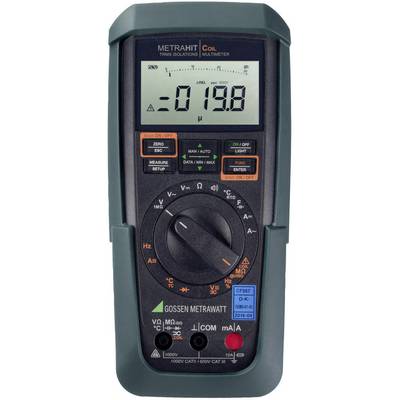

Gossen Metrawatt METRAHIT COIL Handheld multimeter Calibrated to (DAkkS standards) Digital Splashproof (IP54) CAT III 10

  • Item no.: 1405746
  • Manufacturer no.: M246C
  • EAN: 4012932125764

4¾ digit multimeter, insulation tester and motor winding tester for the service area for measuring and testing of industrial vehicles and other with an induction motor driven applications, 30000 digits resolution, 28 multi meter function · Winding ci…

  • Item no.: 1405746
  • Manufacturer no.: M246C
  • EAN: 4012932125764

4¾ digit multimeter, insulation tester and motor winding tester for the service area for measuring and testing of industrial vehicles and other with an induction motor driven applications, 30000 digits resolution, 28 multi meter function · Winding ci…

  • Insulation resistance measurement up to 3.1 GΩ with external voltage detection, test voltage:50 V, 100 V, 250 V, 500 V, 1000V
  • A lot of function multimeter (V, Ω, F, Hz, %)
  • Effective value measurement TRMS AC/AC+DC for current/voltage up to 10 kHz
  • Low-pass filter can be activated, 1 kHz/3 dB in the area V AC
  • Direct current measurement, 100 nA... 10 A
  • Measurement of current via pliers current sensors - "CLIP", the transmission factor of 1 mV: 1 mA to 1 mV: 1A is adjustable and is indicated in the display
  • Precision temperature indicator °C, °F for Pt100/Pt1000 sensors and thermocouple type K
  • Diode measurement (IK = 1 mA, UFluss up to 5.1 V) and continuity test
  • Keying ratio measurement 5 ... 95%.
  • Display 3 3/4-digit, 3 100 Digit, lighting can be connected
  • Acoustic signalling at: continuity test, hazardous contact voltages and overload limit exceeded
  • Storage of MIN/MAX values
  • Measuring data storage and internal clock
  • Power adapter jack
  • Housing in IP54, dust and splash-proof
  • Rubber protective cover
  • Bidirectional infrared interface for data transfer with PC
  • Optional Windows software for processing and graphical representation of measured values via USB interface
Amperage reading range DC (min.) 100 nA
A DC reading range (max.) 10 A
A AC reading range (min.) 100 nA
Amperage reading range AC (max.) 10 A
Measurement type True RMS
Power supply (details) 2 AA batteries
Weight 1.08 kg
Calibrated to
DAkkS standards
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
Current reading AC/DC
Type METRAHIT COIL
Display Digital
Display (counts) 3100
Features Splashproof (IP54)
Product type Handheld multimeter

Technical data

  • Insulation resistance measurement up to 3.1 GΩ with external voltage detection, test voltage:50 V, 100 V, 250 V, 500 V, 1000V
  • A lot of function multimeter (V, Ω, F, Hz, %)
  • Effective value measurement TRMS AC/AC+DC for current/voltage up to 10 kHz
  • Low-pass filter can be activated, 1 kHz/3 dB in the area V AC
  • Direct current measurement, 100 nA... 10 A
  • Measurement of current via pliers current sensors - "CLIP", the transmission factor of 1 mV: 1 mA to 1 mV: 1A is adjustable and is indicated in the display
  • Precision temperature indicator °C, °F for Pt100/Pt1000 sensors and thermocouple type K
  • Diode measurement (IK = 1 mA, UFluss up to 5.1 V) and continuity test
  • Keying ratio measurement 5 ... 95%.
  • Display 3 3/4-digit, 3 100 Digit, lighting can be connected
  • Acoustic signalling at: continuity test, hazardous contact voltages and overload limit exceeded
  • Storage of MIN/MAX values
  • Measuring data storage and internal clock
  • Power adapter jack
  • Housing in IP54, dust and splash-proof
  • Rubber protective cover
  • Bidirectional infrared interface for data transfer with PC
  • Optional Windows software for processing and graphical representation of measured values via USB interface
Amperage reading range DC (min.) 100 nA
A DC reading range (max.) 10 A
A AC reading range (min.) 100 nA
Amperage reading range AC (max.) 10 A
Measurement type True RMS
Power supply (details) 2 AA batteries
Weight 1.08 kg
Calibrated to
DAkkS standards
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
