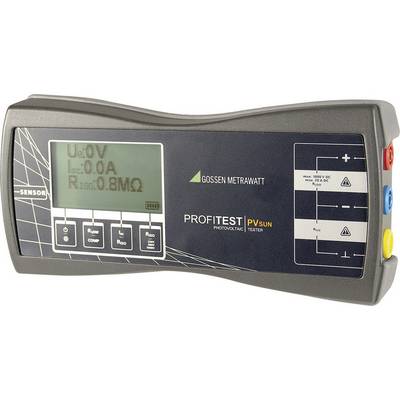

Gossen Metrawatt Profitest PV Sun PV multimeter Digital CAT I
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1,032.77
5
3% = € 30.98
€ 1,001.79
10
5% = € 51.64
€ 981.13
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1,032.77 / piece)
€ 1,032.77
plus VAT.
14-day return policy included
Highlights & Details
Test device for PV systems PROFESSIONAL TEST PVsun
- Compact and robust
- Check for continuity of the protective conductor
- Ground-fault measurement
- Polarity check
- Insulation resistance measurement
Technical specifications
- Graphic display resolution: 128 x 64 pixels
- Insulation resistance test voltage: 250V / 500V / 1000 V/DC
- Voltage reading range DC (min.)
2 V
- Product type
PV multimeter
- Voltage DC reading range (max.)
1000 V
- A DC reading range (max.)
20 A
- Reading range - resistance
0 - 10 Ω
- Basic accuracy
1 %
- Power supply (details)
4 x AA battery
- Height
98 mm
- Width
209 mm
- Length
35 mm
- Weight
0.5 kg
Manufacturer's standards (no certificate)
- Reading category
CAT I
- Voltage metering
DC
- Current reading
DC
- Type
Profitest PV Sun
- Display
Digital
- Dim
(L x W x H) 35 x 209 x 98 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 101683 Gossen Metrawatt Profitest PV Sun PV multimeter Digital CAT I
User & Safety Instructions
User & Safety Instructions 101683 Gossen Metrawatt Profitest PV Sun PV multimeter Digital CAT I
Information
Information 101683 Gossen Metrawatt Profitest PV Sun PV multimeter Digital CAT I
Description
With the PROFESSIONAL TEST PVsun can all required electrical safety testing of photovoltaic systems easily, safely and as per the standard according to DIN EN 62446. The device is suitable for testing of PV-modules and strings up to max. 1000 V/20 A. In addition to the insulation measurement, the polarity test, the universality of the earth-fault check can also be checked. The tester is characterised by its ergonomic design and easy handling with only 500 g.
This text is machine translated.
This text is machine translated.
Features
- Backlit graphic display
- Sensor connection for temperature measurement (optional)
- Compact and robust housing
- Polarity test.
Scope of delivery
- Batteries
- Safety test leads 1.5 m red, blue and yellow
- Solar plug adapter on MC3 and MC4
- Safety test tip with socket can be attached
- Safety alligator clamp with socket can be attached
- Carrying case with foam inserts
- User manual.
