GW Instek GPD-3303D Bench PSU (fixed voltage) 0 - 30 V 0 - 3 A 195 W programmable No. of outputs 3 x
EAN:
Part number:
Item no:
Number
Total (€ 578.99 / piece)
€ 578.99
plus VAT.
Highlights & Details

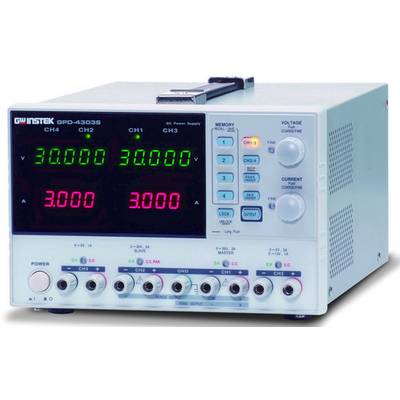

GPD-Series Multiple Output Programmable Linear D.C. Power Supply
- 2/3/4 Independent Isolated Output
- 4 LED Display Sets: 3 digits after decimal point
- Minimum Resolution :
- 1mV/1mA(GPD-2303D/GPD-3303S/GPD-4303S)
- 100mV/10mA(GPD-3303D)
- Digital panel control(rotary encoder Switch, rubber key with indicator)
- User-friendly operation, coarse/fine volume control
- 4 Sets Save/Recall
- Key-Lock
- Output on/off
- Tracking Series and Parallel mode
- Smart cooling fan achieving low noise
- USB Standard Interface
- PC Software & USB Driver
- Labview driver
Technical specifications
- Type
GPD-3303D
- Product type
Bench PSU (fixed voltage)
- No. of outputs
3 x
195 W
- Technology
Linear regulated PSU
- Features
programmable
- Dim
(L x W x H) 265 x 210 x 130 mm
Manufacturer's standards (no certificate)
- Weight
7 kg
- Output voltage (max.)
30 V
- Output voltage (min.)
0 V
- Output voltage 2 (max.)
30 V
- Output voltage 2 (min.)
0 V
- Output voltage 3 (max.)
5 V
- Output voltage 3 (min.)
2.5 V
- Max. output current
3 A
- Output current (min.)
0 A
- Load balance
0.01 %
- Mains control
0.01 %
- Width
210 mm
- Height
130 mm
- Length
265 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2111164 GW Instek GPD-3303D Bench PSU (fixed voltage) 0 - 30 V 0 - 3 A 195 W programmable No. of outputs 3 x
Description
The GPD-X303S Series contain the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing.The GPD-X303 Series offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally , the GPD-X303S Series provide easy operation , a wide selection of panel setting and operation , a wide selection of panel settings. All these features make the GPD-X303 Series the most proming new comer in the power supply maeket.
