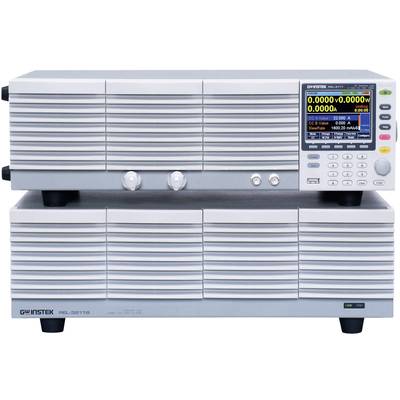

GW Instek PEL-3323 Electrical load 150 V DC 630 A 3150 W
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 18,276.47 / piece)
€
Highlights & Details
PEL-3000/3000H Series Programmable DC Electronic Load
- Operating voltage (DC)：0~150V(PEL-3000)/ 0~800V(PEL-3000H)
- Operating Mode : C.C / C.V / C.R / C.P / CC+CV / CR+CV / CP+CV
- Parallel Connection of Inputs for Higher Capacity (Max : 9,450W)
- Support of High Slew Rate：Max. 16A/us((PEL-3000)/ 0.84A/us(PEL-3000H)
- Run Program Function（GO/NO GO Test）
- Sequence Function for High Efficient Load Simulations
- Dynamic(Switching) Function：0.0166Hz ~20kHz
- Soft Start Function：Off / On(1~200ms, Res：1ms)
- Adjustable OCP / OVP / OPP / UVP Setting
- Short Circuit Function
- Timer function : Elapsed Time of load on
- Cut Off Time(Auto Load Off Timer )：1s to 999h 59min 59s or Off
- External Channel Control / Monitoring via Analog Control Connector
- Setup Memories：100 sets
- 3.5 Inch TFT LCD Display
- Multi Interface : USB 2.0 Device / Host , RS-232 , GPIB / LAN (Optional)
Technical specifications
- Interfaces: Analogueue, USB, RS232
- Display type used: Color, LCD 3.5"
- Type
PEL-3323
- Load input current (max.)
630 A
- Max. non-stop power rating
3150 W
- Dim
(W x H x D) 598 x 611 x 706 mm
- Weight
85.5 kg
- Depth
706 mm
- Height
611 mm
- Width
598 mm
Manufacturer's standards (no certificate)
- Min. load input current
0 A
- Max. input voltage
150 V DC
- Load input voltage (min.)
1.5 V DC
- Product type
Electrical load
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2178567 GW Instek PEL-3323 Electrical load 150 V DC 630 A 3150 W
Description
The PEL-3000 series, a single-channel, programmable D.C. electronic load with 0.01mA current resolution and 16A/μs current Slew Rate, is very ideal for testing server power supply and SPS (Switching Power Supply) for commercial and industrial computers. For a heavy-duty device like cloud ecosystem running 24-hour nonstop operations, a stable and high-power power supply, ranging from 175W to 1050W, is required to maintain the normal operation of server, Hub, and the equipment of data storage and internet communications. Owing to the increasing demand of data transmission and large scale data storage of telecommunications systems, the infrastructure of internet communications is in the pace of rapid expansion. This has greatly boosted the market demand of telecommunications equipment powered by power supply of 2000W and above. The flexible power combination of PEL-3000 meets the test requirements of present high-power power supply.
The PEL-3000H programmable DC Electronic load, which not only inherited functions and features from the PEL-3000 series but providing three current ranges for all PEL-3000H series and adding voltage monitor BNC terminals on the front panel. The PEL-3000H series, a single-channel, programmable D.C. electronic load with 800V and 0.84A/μs current Slew Rate, is ideal for the test of the high voltage devices such as the EV & HEV in-vehicle chargers, DC/DC converters or high-voltage batteries.
The PEL-3000H programmable DC Electronic load, which not only inherited functions and features from the PEL-3000 series but providing three current ranges for all PEL-3000H series and adding voltage monitor BNC terminals on the front panel. The PEL-3000H series, a single-channel, programmable D.C. electronic load with 800V and 0.84A/μs current Slew Rate, is ideal for the test of the high voltage devices such as the EV & HEV in-vehicle chargers, DC/DC converters or high-voltage batteries.
