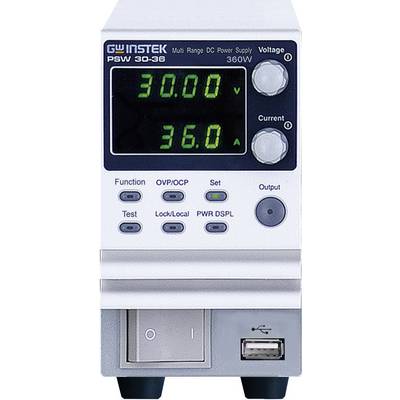

GW Instek PSW30-36 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 36 A 360 W No. of outputs 1 x
EAN:
Part number:
Item no:
Number
Total (€ 1,419.33 / piece)
€ 1,419.33
plus VAT.
Highlights & Details
Programmable Laboratory Power Supply PSW 30-36
- No. of outputs 1 x
- 0 - 30 V DC / 0 - 36 A
- 360 W
Technical specifications
- Type
PSW30-36
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
360 W
- Technology
SMPSU
- Dim
(W x H x D) 71 x 124 x 350 mm
Manufacturer's standards (no certificate)
- Input voltage
115 V AC
230 V AC
- Weight
3 kg
- Type
Desktop
- Output voltage (max.)
30 V DC
- Output voltage (min.)
0 V DC
- Max. output current
36 A
- Output current (min.)
0 A
- Mains control
0.05% +5 mV
- Type
Synchronised
- Width
71 mm
- Height
124 mm
- Output current 1
0 - 36 A
- Depth
350 mm
360 W
- Input voltage
85 - 265 V AC
- Output voltage 1
0 - 30 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 515686 GW Instek PSW30-36 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 36 A 360 W No. of outputs 1 x
Information
Information 515686 GW Instek PSW30-36 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 36 A 360 W No. of outputs 1 x
Conformity certificate
Conformity certificate 515686 GW Instek PSW30-36 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 36 A 360 W No. of outputs 1 x
Download
Download 515686 GW Instek PSW30-36 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 36 A 360 W No. of outputs 1 x
Download 515686 GW Instek PSW30-36 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 36 A 360 W No. of outputs 1 x
Description
The devices of the PSW-series are multi-area laboratory power supply with an output. The multi-range function allows a fast and flexible adjustment of output voltage and photoconductor within the output power of the device. There can be up to 3 power supplies in parallel, and up to 2 units. To do this, you can also devices of the PSW-series with different output values are combined. This creates a variety of combination possibilities and thus offers the right solution for many applications. By default, the devices of the PSW-series with a USB and LAN interface.
This text is machine translated.
This text is machine translated.
Features
- Output voltages of up to 80 V/DC
- Powers up to 1080 W
- Series and parallel switching
- Adjustable Rise time
- Interfaces: LAN, USB
- CV/CC-priority.
Scope of delivery
- Power cable;
- LabVIEW driver (CD)
- User manual.
