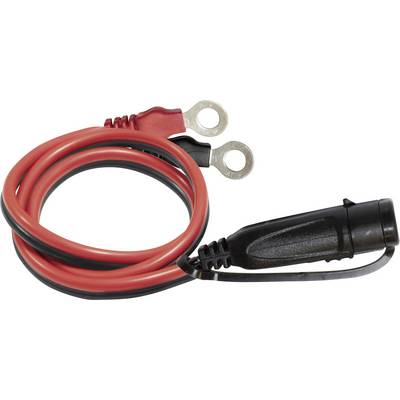

A red battery connection cable with attached terminals and a plug connector at the other end.

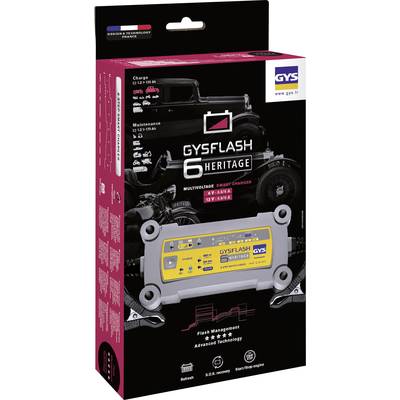

Packaging for the GYSFLASH 6 Heritage Multi-Charger. Displays the charger, technical specifications and highlights advanced technology and compatibility with classic vehicles.

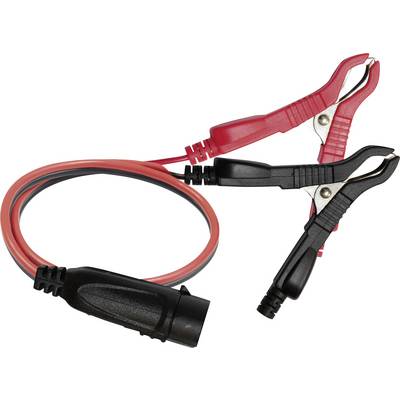

Jump leads with red and black clamps, used for starting a vehicle by connecting to a battery.

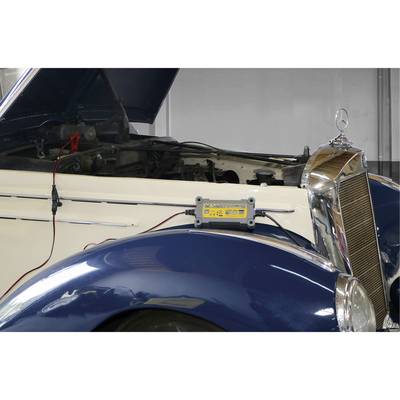

An old car with an open bonnet is being charged with a charging device.

'Diagram shows an eight-stage process. Stage 4 with "SOS recovery" and Stage 7 with "REFRESH" are highlighted.'

1/6

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 84.03 / piece)

€ 84.03

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

GYS GYSFLASH HERITAGE 6A 029538 Automatic charger 12 V, 6 V 6 A

Winter Special mode
2 V recovery
Refresh Mode

Technical specifications

Product type: Automatic charger

Dim: (L x W x H) 190 x 100 x 52 mm

Battery voltage: 12 V
6 V

Operating voltage: 230 V / AC

Recommended battery capacity at 12 V max.: 125 Ah

Recommended battery capacity at 12 V min.: 1.2 Ah

Recommended battery capacity at 6 V max.: 125 Ah

Recommended battery capacity at 6 V min.: 1.2 Ah

Suitable for: Lead acid
SLA

Weight: 0.85 kg

Features: Battery life protection
Charge monitoring
Suitable for start-stop systems
Refresher/regenerator
Constant voltage

Charging current at 12 V: 6 A

Charging current at 6 V: 0.8 A

Width: 100 mm

Height: 52 mm

Length: 190 mm

: IP65

Documents & Downloads

Datasheet

Datasheet 1616212 GYS GYSFLASH HERITAGE 6A 029538 Automatic charger 12 V, 6 V 6 A

User & Safety Instructions

User & Safety Instructions 1616212 GYS GYSFLASH HERITAGE 6A 029538 Automatic charger 12 V, 6 V 6 A

Information

Information 1616212 GYS GYSFLASH HERITAGE 6A 029538 Automatic charger 12 V, 6 V 6 A

Description

The GYFLASH HERITAGE 6A is a charger for 6 V and 12 V batteries of motorcycles and old-timers. With the intelligent, eight-phase charging curve and a charging mode for smaller battery capacities from 1.2 to 125 Ah is the GYSFLASH HERITAGE also for modern vehicles..

This text is machine translated.

Features

Especially for 12 V batteries (Bei-Saure) from 1.2 to 125 Ah, trickle charging to 170 Ah possible
Protect the battery (from 1.2 to 15 Ah) during the charging process.
Revival and restoration tiefenladener batteries
The charger can be used during a hibernation connected to the batteries. Auto-restart function in case of power failure with save the settings.
Eight-stage, monitoring, free of charge and maintenance phase improves the
Life and the performance of the battery
Recovery of deep discharged batteries 2 V (SOS Recovery)
The protection of the vehicle electronics: Protection against short-circuit, polarity reversal and overvoltage. Anti-spark System
Protection from wrong selected voltage
Automatic switch-off with the battery disconnected
Built-in temperature sensor prevents overheating of the internal electronics
A simple user interface prevents incorrect settings
Compact design, lightweight and portable
Connection with water-tight quick connection plugs
Completely dust- and water proof casing (IP65)
Optional wall mounting
