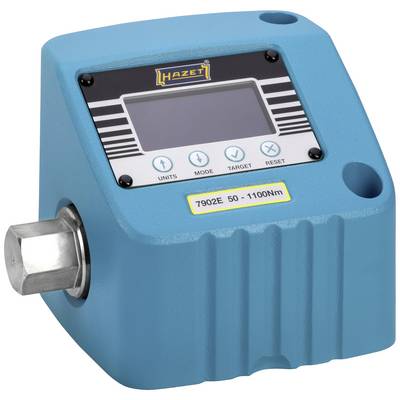

Hazet 7902E 7902E Torque tester Hex head 100 - 1000 Nm
EAN:
Part number:
Item no:
Number
Total (€ 2,231.09 / piece)
€ 2,231.09
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Product type
Torque tester
- Downforce
Hex head
- Torque (min.)
100 Nm
- Torque (max.)
1000 Nm
- Trigger accuracy
1 %
- DIN standard
DIN EN ISO 6789
- Weight
3.84 kg
- Width
160 mm
- Height
97.5 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1288994 Hazet 7902E 7902E Torque tester Hex head 100 - 1000 Nm
Description
According to DIN EN ISO 6789:2003. · Accuracy ±1%. · 3 Application modes:. - Concurrent Display (track). - Anti-kink point detection (1st peak). - The peak value (Final Peak). · Delivery including power supply and RS-232C connector cable to PC or printer. · Compatible with test software 7901 E-D. . · Large, easy to read LED-display with 3 LEDS for status display easily recognizable. · Fast attachment by means of 4 screws on flat surfaces (table, wall, etc.). · Easy to use · Display in Nm, lbf.ft and easily switchable to lbf. in. · Easy Specification of a target torque with tolerances. · Weight: 3,28 kg. Weight including case and power supply: 4,66 kg. · Measuring range 100 to 1000 Nm (max torque). · Fixed hexagonal recording, width 27 mm. · H 97.5 x diameter 160 mm (182 mm including test cap). · In plastic case. · In soft foam insert.
This text is machine translated.
This text is machine translated.
Features
- According to DIN EN ISO 6789:2003
- Accuracy tolerance ± 1%
- 3 operation modes: - Tracking mode - Click mode for click point indication (1st peak) - DIAL mode for peak value indication (final peak)
- Supplied in delivery: Mains adapter and RS-232C connection cable to computer and printer
- Compatible with HAZET testing software 7901 E-D
- Big and easy to readLED status display with 3 LED
- Quick wall or table fixation with 4 screws
- Simple handling
- Calibration in Nm, torque units lbfft and lbfin may also be selected
- Possibility to enter target torque setting and percentage tolerance setting
- Weight device: 328 kg - Weight incl case and mains adapter: 4,66 kg
- Measuring range100 - 1000 Nm (max torque)
- Fix hexagon socket, Wrench size 27 mm
- H 975 x Ø 160 mm (182 mm, testing hexagon incl)
- Net weight: 384 kg
