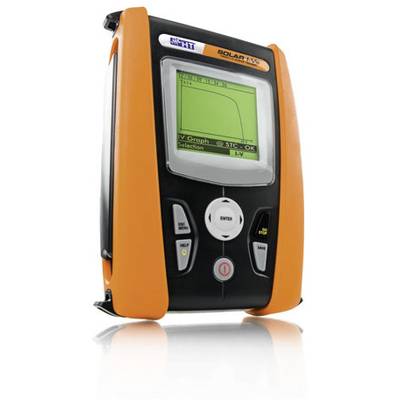

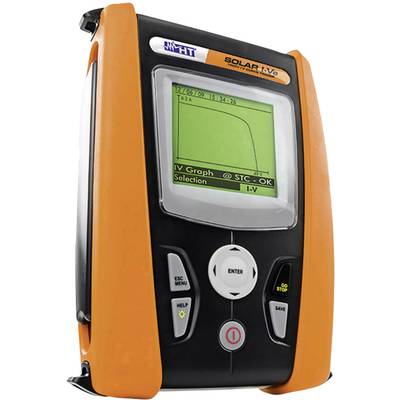

HT Instruments SOLAR I-VE PV multimeter Digital Data logger, Environmental reading mode CAT II 1000 V, CAT III 300 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4,847.90 / piece)
€ 4,847.90
plus VAT.
Highlights & Details
SOLAR I-VECharacteristic analysator for PV modules/strings & 1-PHASE PV systems
- CAT II 1000 V, CAT III 300 V
- LCD with background lighting, 128 x 128 pixels
- 256 Kbytes, storable curves
Technical specifications
- Solar radiation: 1.0 mV - 100.0 mV
- Voltage reading range DC (min.)
15.0 V
- Product type
PV multimeter
- Voltage DC reading range (max.)
1499.9 V
- V AC reading range (min.)
50 V
- V AC reading range (max.)
265.0 V
- Amperage reading range DC (min.)
50 mA
- A DC reading range (max.)
1100 A
- A AC reading range (min.)
10 mA
- Amperage reading range AC (max.)
1200 A
- Temperature
-20 to +100 °C
- Basic accuracy
0.5 %
- Power supply (details)
6 x AA batteries
- Height
235 mm
- Width
165 mm
- Length
75 mm
- Weight
1400 g
Manufacturer's standards (no certificate)
- Reading category
CAT II 1000 V
CAT III 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
SOLAR I-VE
- Display
Digital
- Dim
(L x W x H) 75 x 165 x 235 mm
- Features
Data logger
Environmental reading mode
- Interfaces
USB
Wi-Fi
Documents & Downloads
Datasheet
Datasheet 1930359 HT Instruments SOLAR I-VE PV multimeter Digital Data logger, Environmental reading mode CAT II 1000 V, CAT III 300 V
User & Safety Instructions
User & Safety Instructions 1930359 HT Instruments SOLAR I-VE PV multimeter Digital Data logger, Environmental reading mode CAT II 1000 V, CAT III 300 V
Information
Information 1930359 HT Instruments SOLAR I-VE PV multimeter Digital Data logger, Environmental reading mode CAT II 1000 V, CAT III 300 V
Description
The SOLAR I-ve enables in addition to the performance analysis (AC & DC) of a 1-phase PV system also the determination of current-voltage-characteristic of photo-voltaic-single module or a module string upto max.1500V and 15 A (see also model I-V 500W).
This text is machine translated.
This text is machine translated.
Features
- The following values are directly on the screen of the SOLAR I-VE is displayed:
- Peak capacity Pmax (by STC) and the currently measured performance
- Short circuit current Isc, idle-run voltage Uoc
- Current Impp and voltage Umpp
- Bulk factor FF in %
- A graphics's representation of the I-U and PWR characteristic curve for OPC and STC
- The total outcome of testing
- A voltage measurement into AC & DC
- Current measurement in AC & DC
- Power in AC and DC (only 1-phase systems)
- Degree of efficiency of the inverter
- Efficiency generator side
- Temperature and solar radiation in W/m2)
Scope of delivery
- Device protection case VA 500
- Duo-Einstrahlungssensor HT 304
- External Data Logger SOLAR-02
- Temperature sensor PT300N
- Inklinometer M 304
- Four-conductor-Measuring cable KIT GSC 4
- KITPV-MC3 measuring adapter KIT-MC3
- KITPV-MC4 measuring adapter KIT-MC4
- AC current transformer 200 A AC HT4005 K
- DC current transformer 10 A/100 A AC HT4004N
- 6 x 1.5 V AA
- USB-connection cable C 2006
- Measure value memory for 200 Mess curves
- CD-ROM with Auswertsoftware TOPVIEW*
- User manual
- Calibration protocol ISO 9000.
