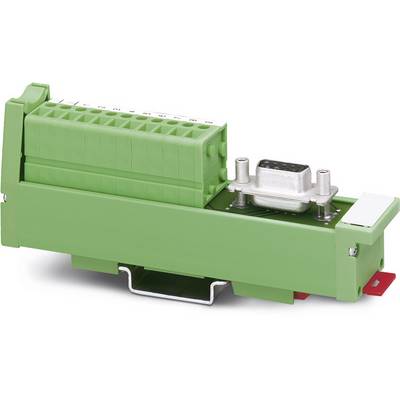

Interface module UM 25-D15SUB/S/FRONT/Q 2959599 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
15
Connection
D-Sub pin strip
Stripping length (max.)
8 mm
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
15
- Connection
D-Sub pin strip
- Stripping length (max.)
8 mm
- Dim
(W x H) 25 mm x 147 mm
- Connector (field)
Screws
- Connector (control)
D-Sub pin strip
- Content
1 pc(s)
- Number of pins
15
- Width
25 mm
- Height
147 mm
- Series
Varioface-Slim-Line-UM25
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 773488 Interface module UM 25-D15SUB/S/FRONT/Q 2959599 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 773488 Interface module UM 25-D15SUB/S/FRONT/Q 2959599 Phoenix Contact
Description
VARIOFACE SLIM LINE, with screw connection and D-subminiature pin strip, for assembly at a right angle on NS 35/7.5, 15 positions
