Interface module UMK- PVB 2/32/ZFKDS 2302379 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
2, 32
Connection
Punchdown block
Stripping length (max.)
8 mm
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
2, 32
- Connection
Punchdown block
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 51.5 x 90 x 77 mm
- Connector (field)
Pull spring
- Connector (control)
Pull spring
- Content
1 pc(s)
- Number of pins
2
32
- Width
90 mm
- Height
77 mm
- Length
51.5 mm
- max. cross section
6 mm²
- Min. cross section
0.2 mm²
- Series
Varioface-UMK-PVB
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Leading contact (PE)
No
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
+ 2 bonding bars
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 774468 Interface module UMK- PVB 2/32/ZFKDS 2302379 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 774468 Interface module UMK- PVB 2/32/ZFKDS 2302379 Phoenix Contact
Description

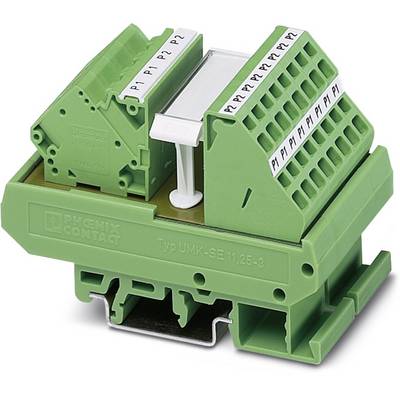

VARIOFACE module, with two equipotential busbars (P1, P2) for potential distribution, for mounting on NS 35/7.5 or NS 32. Module width: 90 mm
