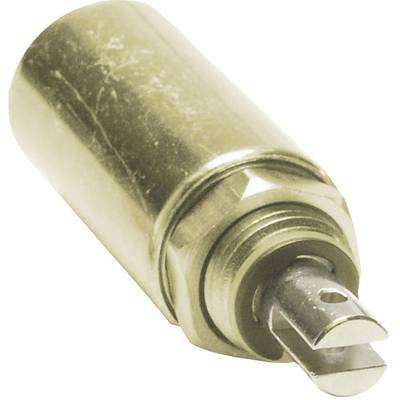

RED MAGNETICS ITS-LZ-1949-Z-6VDC Solenoid attracting 0.6 N 11 N 6 V DC 7 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Technical specifications
- Attachment: screw thread
- Type
ITS-LZ-1949-Z-6VDC
- Type
attracting
- Connection
Open end cable
- Cable length
15.00 cm
- Nominal voltage
6 V DC
- Nominal lift
10 mm
7 W
- Initial force
0.6 N
- Peak force
11 N
- Temperature limit
130 °C
- Weight
86 g
- Length
49 mm
- (Ø)
20 mm
- Dim
(Ø x L) 20 mm x 49 mm
- RoHS-compliant
Yes
- Type
pulling
- Nominal voltage (details)
6 V DC
- Type
ITS-LZ-1949-Z-6VDC
- Fitting method
M3
- Product type
Solenoid
Documents & Downloads
Datasheet
Datasheet 502673 RED MAGNETICS ITS-LZ-1949-Z-6VDC Solenoid attracting 0.6 N 11 N 6 V DC 7 W
User & Safety Instructions
User & Safety Instructions 502673 RED MAGNETICS ITS-LZ-1949-Z-6VDC Solenoid attracting 0.6 N 11 N 6 V DC 7 W
Description
The closed construction makes these magnets more efficient open-ended magnets They can be used in harsh environments as the casing is very stable and tough. Installation using screw thread.
Hints
Weight specification including plunger core.
