Joy-it JT-DPS5005 Bench PSU (adjustable voltage) 0 - 50 V 0 - 5 A 250 W Screw terminals remote controlled, programmable
- Item no.: 1763278
- Manufacturer no.: JT-DPS5005
- EAN: 4250236817354
This programmable control voltage module with constant voltage and constant current combines analogue integration and digital control functions in one device. The device has an internal memory and a colored 3.6 cm (1.2") OLED display to give you all …
- Warranty: 24 months
- Manufacturer: Joy-it
- Item no.: 1763278
- Manufacturer no.: JT-DPS5005
- EAN: 4250236817354
This programmable control voltage module with constant voltage and constant current combines analogue integration and digital control functions in one device. The device has an internal memory and a colored 3.6 cm (1.2") OLED display to give you all …
- Warranty: 24 months
- Manufacturer: Joy-it
Technical data
| Type | JT-DPS5005 |
|---|---|
| No. of outputs | 1 x |
| Power | 250 W |
| Technology | SMPSU |
| Interfaces | Screw terminals |
| Features | remote controlled , programmable , slim type |
| Dim | (L x W x H) 45 x 80 x 42 mm |
| Weight | 88 |
| Height | 42 mm |
| Length | 45 mm |
| Width | 80 mm |
|---|---|
| Calibrated to | Manufacturer's standards (no certificate) |
| Type | Programmable Step-down regulator |
| Max. output current | 5 A |
| Output current (min.) | 0 A |
| Output voltage (max.) | 50 V |
| Output voltage (min.) | 0 V |
| Connections | Communication interface; input/output. |
| Type | DC DC Converters |
| Product type | Bench PSU (adjustable voltage) |

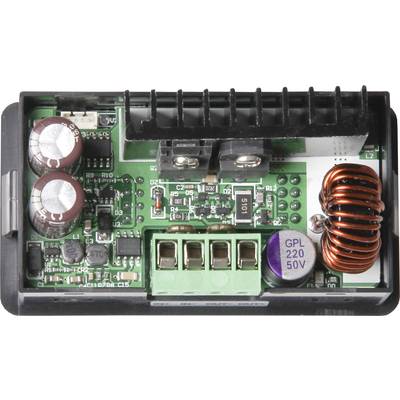

Progr. Laboratory power supply JT DPS5005
This programmable control voltage module with constant voltage and constant current combines analogue integration and digital control functions in one device. The device has an internal memory and a colored 3.6 cm (1.2") OLED display to give you all relevant data. All the needed settings are done via 3 buttons and a rotary knob. The high precision and the compact construction allow far-reaching areas of use.
High-quality components and the possibility of optional communication interfaces integrate characterise this laboratory power supply.
Optionally, a USB or Bluetooth wireless module and a suitable case available.
This text is machine translated.
Highlights & Details
- 0 - 50 V/0 - 5 A
- 250 W
- Very accurate by quality components
- Compact dimensions
- Ideal for Integration
- Colored OLED display
- Optional communication interface (BT-radio or USB).
Facts
- Optional communication modules can be retrofitted · OLED color display · Rotary knob for fast adjustment · Quality components · Measurement of input voltage · Measurement of output voltage · The calculation of the output power ·
- For wall mounting/Integration prepared.
Delivery
- Joy-IT DPS5005
- User manual.
- Warranty: 24 months
- Manufacturer: Joy-it
Comments
Optional USB interface: part number 1763282.Optional BT wireless module: part number 1763280.
