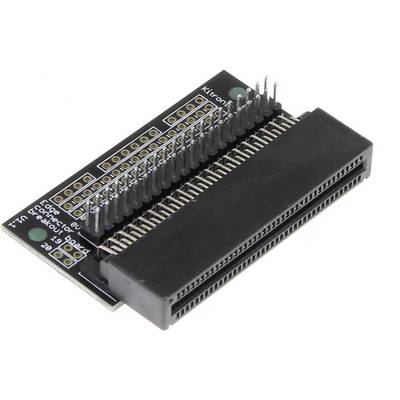

Joy-it KI-5601B Adapter 1 pc(s) Compatible with (development kits): BBC micro:bit
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Breakout Board soldered for micro: bit
- Separate prototyping area with 0 V and 3 V-Series
- Labelled pins (21)
Technical specifications
- Separate prototyping area with 0 V and 3 V-Series
- Labelled Pins
- Packaging type
Bulk
- Product type
Adapter
- Interfaces
ISP
- Suitable for
BBC micro:bit
- Height
11.8 mm
- Length
40 mm
- Width
60 mm
- Compatible with
BBC micro:bit
- Factory colour
Black
- I/O number
21
- Type
Breakout Board
Documents & Downloads
Datasheet
Datasheet 1665591 Joy-it KI-5601B Adapter 1 pc(s) Compatible with (development kits): BBC micro:bit
User & Safety Instructions
User & Safety Instructions 1665591 Joy-it KI-5601B Adapter 1 pc(s) Compatible with (development kits): BBC micro:bit
Description
This breakout board allows quick and easy new circuits and hardware to the BBC Micro: bit to connect.
The access to all important pins is guaranteed and also a direct access to the Buttons A and B is possible.
The prototyping area with 0 V, 3 V and disconnected items allows an optimal circuit design.
This text is machine translated.
The access to all important pins is guaranteed and also a direct access to the Buttons A and B is possible.
The prototyping area with 0 V, 3 V and disconnected items allows an optimal circuit design.
This text is machine translated.
Scope of delivery
- Breakout Board
