Joy-it Mediastation-Kit Raspberry Pi® 4 B 4 GB 4 x 1.5 GHz Housing, PSU, HDMI cable, Noobs OS
With this kit you get everything necessary to configure an elegant multimedia station for your living room or a small mini desktop PC.Have you not always disturbed the cables coming from all sides of the housing in your Pi project?The times are over.…
- Warranty: 24 months
- Manufacturer: Joy-it
With this kit you get everything necessary to configure an elegant multimedia station for your living room or a small mini desktop PC.Have you not always disturbed the cables coming from all sides of the housing in your Pi project?The times are over.…
- Warranty: 24 months
- Manufacturer: Joy-it
Technical data
- Voltage supply
- 5V DC (USB-C)
- Microcontroller (casing board) STM32F030F4P
- Infrared receiver TSOP4838
- 4x WS2812Mini LEDs
- Connectors led out
- 1x USB-C, 1x Aux, 2x microHDMI, [from Raspberry Pi: 2x USB-A 3.0, 2x USB-A 2.0, 1x RJ45]
Type | Raspberry Pi® 4 B |
---|---|
SoC | Broadcom 2711 |
Processor | ARM Cortex-A72 |
Processor cores (No.) | 4 x |
GPU | Broadcom Video Core VI |
RAM | 4 GB |
Clock speed | 1.5 GHz |
Memory type | DDR4 |
Operating system (Version) | Raspbian |
Memory capacity | 32 GB |
Internal ports | CSI (camera) , DSI (display) , GPIO (40-pin) |
---|---|
External ports | 2x USB 2.0 , 2x USB 3.0 , LAN (10/100/1000) , 2x HDMI™ , 3.5 mm jack , micro SD , USB-C |
Wi-Fi | b/g/n/ac |
Bluetooth | 5.0 |
Power supply (LOV) | via USB |
Output voltage (min.) | 5 V DC |
Output current | 3 A |
Content | Housing , PSU , HDMI cable , Noobs OS |
Length | 100 mm |
Width | 113 mm |
Height | 38 mm |
Product type | SBC starter kit |
Documents & Downloads
- Manual 2301508 Joy-it Mediastation-Kit Raspberry Pi® 4 B 4 GB 4 x 1.5 GHz Housing, PSU, HDMI cable, Noobs OS
PDF - Manual 2301508 Joy-it Mediastation-Kit Raspberry Pi® 4 B 4 GB 4 x 1.5 GHz Housing, PSU, HDMI cable, Noobs OS
PDF - Manual 2301508 Joy-it Mediastation-Kit Raspberry Pi® 4 B 4 GB 4 x 1.5 GHz Housing, PSU, HDMI cable, Noobs OS
PDF
Raspberry Pi 4 - 4GB Multimedia/Desktop KIT
With this kit you get everything necessary to configure an elegant multimedia station for your living room or a small mini desktop PC.
Have you not always disturbed the cables coming from all sides of the housing in your Pi project?
The times are over. All connections are discharged to the rear of the housing.

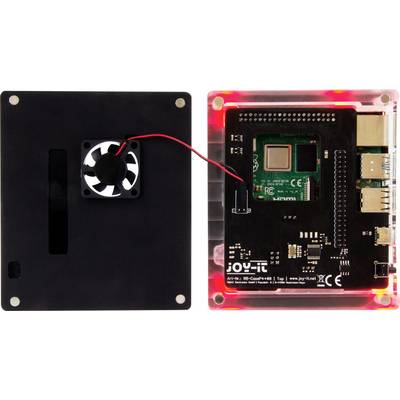

The scope of delivery includes a circuit board specially tuned to the housing, which is directly attached to the Raspberry PI4-4GB.
This redirects the signals to new outputs.
In order to operate the Pi from the couch, a programmable infrared receiver has been integrated on the board, which is compatible with almost all programmable remote controls.
In addition to a special Libreelec version, tools for configuring a remote control and the RGB LED lighting implemented in the housing have been integrated on the supplied 32GB memory card.
THERE is also AN ON/OFF button on the back of the housing. Of course, it is also possible to switch your Pi on and off with the remote control.
The cooling is done by a passive heat sink which is glued to the CPU of the Pi. If the Pi runs at full load for longer and the passive cooler is not sufficient, the active fan in the housing can be switched on. The fan can also be adjusted or completely deactivated via a tool in the software as desired. It works pleasantly quiet and can only be heard at the maximum rotation speed (but is usually not necessary).

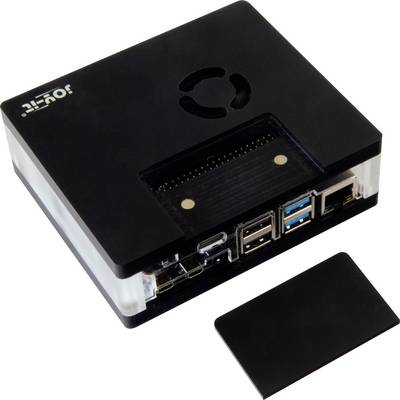

The GPIO connections are looped through the control board and can still be used. They can be reached if required by a magnetically held flap on the top of the housing.
This text is machine translated.
Highlights & Details
- Integrated IR receiver, controllable with almost all IR remote controls
- Controllable LED lighting
- Switch on/off, activate additional functions of the Pi
- Active, quiet cooling
- Tool-free, magnetic assembly
- All connectors of the Pi are located on the back
- GPIO port accessible via separate door
- Incl. Raspberry Pi 4GB
- Pre-configured 32GB memory card with Libreelec and configuration tools
Delivery
- Housing, Raspberry PI4 4GB, LAN cable, power supply, HDMI cable, 32GB memory card with Sofftware
- Warranty: 24 months
- Manufacturer: Joy-it
