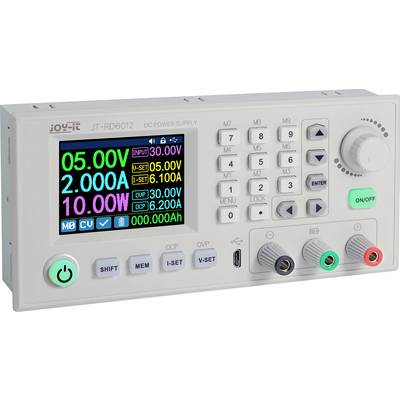

Joy-it RD6012 Bench PSU (adjustable voltage) 0 - 60 V 0 - 12 A remote controlled, programmable, slim type
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Highlights & Details
RD6012 - 60 V - 12 A LABORATORY POWER SUPPLY
- 0 - 60 V / 0 - 12 A
- remote controlled, programmable, slim type
Technical specifications
- Voltage resolution: 0.01V
- Current resolution: 0.001A
- Battery charging range 0-9999.99Ah / 0-9999.99 Wh
- Display: 2.4 inch (6.09cm) LCD.
- Type
RD6012
- Product type
Bench PSU (adjustable voltage)
- Technology
SMPSU
- Features
remote controlled
programmable
slim type
- Dim
(L x W x H) 65 x 167 x 81 mm
Manufacturer's standards (no certificate)
- Input voltage
6 V DC/AC
70 V DC/AC
- Weight
607 g
- Output voltage (max.)
60 V
- Output voltage (min.)
0 V
- Max. output current
12 A
- Output current (min.)
0 A
- Type
Electronically controlled switched power supply
- Width
167 mm
- Height
81 mm
- Length
65 mm
- Residual ripple
100 mVpp
- Max. temperature
40 °C
- Min. temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 2302163 Joy-it RD6012 Bench PSU (adjustable voltage) 0 - 60 V 0 - 12 A remote controlled, programmable, slim type
User & Safety Instructions
User & Safety Instructions 2302163 Joy-it RD6012 Bench PSU (adjustable voltage) 0 - 60 V 0 - 12 A remote controlled, programmable, slim type
Description
The RD6012 laboratory power supply can provide up to 60 V and 12 A when used in conjunction with a high-performance DC source.The power supply has a programmable keypad that is very easy to operate and provides access to 9 memory slots.Via the integrated USB-interface the RD6012 can be controlled comfortably via software from a PC. A charging function for rechargeable batteries is also integrated.The RD6012 has various protection and limitation functions:- Constant voltage operation- Constant current operation- Overvoltage protection- Overcurrent protection- Removable fuses on the board (back of the power supply)Optional accessories include a chassis, power supply, and Wi-Fi module.Available accessories:- JT-RD6012-Case01: A large housing that offers space for a (industrial) power supply.- JT-RD6012-NT: POWER SUPPLY: 60 V, 12 A, 720 WATTS, 115 - 230 V.- JT-RD6006-Con: The WiFi module enables access via smartphone app.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Bench power supply unit
Hints
Supplied without power supply - please order separately if necessary.
