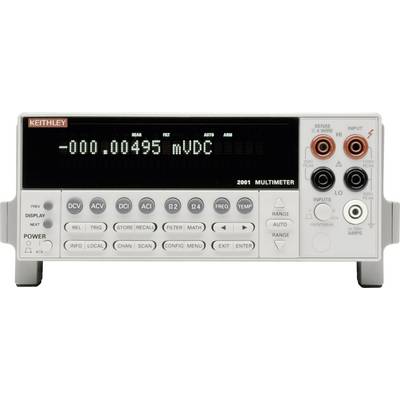

Keithley 2001 Bench multimeter Digital Display (counts): 10000000
- Item no.: 1164898
- Manufacturer no.: 2001
- EAN: 2050001947796
DMM users with applications that require a particularly high resolution, accuracy and sensitivity at high throughput require, now get an attractive alternative to high-priced high-end DMMs. The 7½-digit digital multimeter Model 2001 by keithley meets…
- Warranty: 24 months
- Manufacturer: Keithley
- Item no.: 1164898
- Manufacturer no.: 2001
- EAN: 2050001947796
DMM users with applications that require a particularly high resolution, accuracy and sensitivity at high throughput require, now get an attractive alternative to high-priced high-end DMMs. The 7½-digit digital multimeter Model 2001 by keithley meets…
- Warranty: 24 months
- Manufacturer: Keithley
Technical data
| Voltage reading range DC (min.) | 0.00001 mV |
|---|---|
| Voltage DC reading range (max.) | 1000 V |
| V AC reading range (min.) | 0.00001 mV |
| V AC reading range (max.) | 750 V |
| Amperage reading range DC (min.) | 0.00001 µA |
| A DC reading range (max.) | 2 A |
| A AC reading range (min.) | 0.00001 µA |
| Amperage reading range AC (max.) | 2 A |
| Reading range - resistance | 0.00 0001 Ω - 1 GΩ |
| Frequency reading range | 1 Hz - 15 MHz |
| DC resistance | 10 MΩ |
|---|---|
| AC resistance | 10 MΩ |
| Basic accuracy | 1.5 % |
| Measurement type | True RMS |
| Frequency range | 20 Hz - 2 MHz |
| Height | 90 mm |
| Width | 214 mm |
| Length | 369 mm |
| Weight | 4.2 kg |
| Calibrated to | Manufacturer's standards (no certificate) |
| Type | 2001 |
| Display | Digital |
| Display (counts) | 10000000 |
| Interfaces | GPIB |
| Temperature reading range (max.) | +1820 °C |
| Temperature reading range (min.) | -200 °C |
| Product type | Bench multimeter |
Documents & Downloads
Table Multimeter Model 2001 High Performance
DMM users with applications that require a particularly high resolution, accuracy and sensitivity at high throughput require, now get an attractive alternative to high-priced high-end DMMs. The 7½-digit digital multimeter Model 2001 by keithley meets not only the performance requirements normally associated with expensive instruments are connected, but also offers a wide range of functions, which does not necessarily available by default on DMMs The internal peak detector detects such as Current peaks, AC power voltage peaks and short-term drop on components. With the Model 2001 can be AC peak values, average values and real effective values directly record, so that a comprehensive and accurate signal integrated pre-installation is possible.
This text is machine translated.
Highlights & Details
- Real 7½-digit resolution
- Excellent measurement integrity at high speed
- Fast function and change
- Wide range of built-in measurement functions
- Simultaneous display of several measured values
- Optional built-in 10-channel scanner
- GPIB interface
Delivery
- Power cord
- User manual
- Data sheet
- Model8605 high-performance test leads (0.9m)
- Warranty: 24 months
- Manufacturer: Keithley
