Knipex 64 32 120 Electrical & precision engineering End cutting nippers non-flush type 120 mm
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
14-day return policy included
Highlights & Details
Electronics end-cutting nippers
Technical specifications
- Head dimensions A 11.00 mm
- B 10.00 mm
- D 7.00 mm
- C 17.00 mm
- Angle 15 °
- Product type
End cutting nippers
- Manufacturer part #
64 32 120
- Range of use
Electrical & precision engineering
- Length
120 mm
- Material
Tool steel
- Material properties
tempered
polishing
- Edge hardness
56 HRC
- Wire hardness (max.) soft wire
1.5 mm
- Wire hardness (max.) medium wire
1 mm
- Wire hardness (max.) hard wire
0.5 mm
- DIN standard
DIN ISO 9654
- Width
67 mm
- Weight
92 g
- Features
non-flush type
- Type
Oblique end cutter with small head, a= 15 °.
- Type
64 32 120
- Standards
DIN ISO 9654
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822234 Knipex 64 32 120 Electrical & precision engineering End cutting nippers non-flush type 120 mm
Description
Special tool steel in special quality, forged, oil-hardened, head mirror-polished, grips with multi-component sleeves, oblique end cutter
Style 3: oblique end cutter with small head, a= 15 °.
Style 3: oblique end cutter with small head, a= 15 °.
Features
- Friction-less dual spring for gentle and even opening
- Cutting edge hardness min. 56 HRC
- Zero backlash box joint

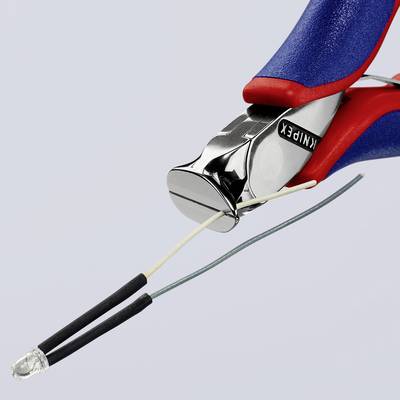

- Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
- The polishing or mirror polishing (style 2 only) and fine oil film offer excellent protection against rust - no interference in the circuit by flaking chrome parts
